Grinding machines / Cylindrical / BUB 50B/3000 Multi

• Inventory number 251449
• Machine type BUB 50B/3000 Multi
• Producer TOS Hostivař
• YOM 2012

Subject to change of technical parameters.

Description

MAx. workpiece weight with steady: 700 Kg

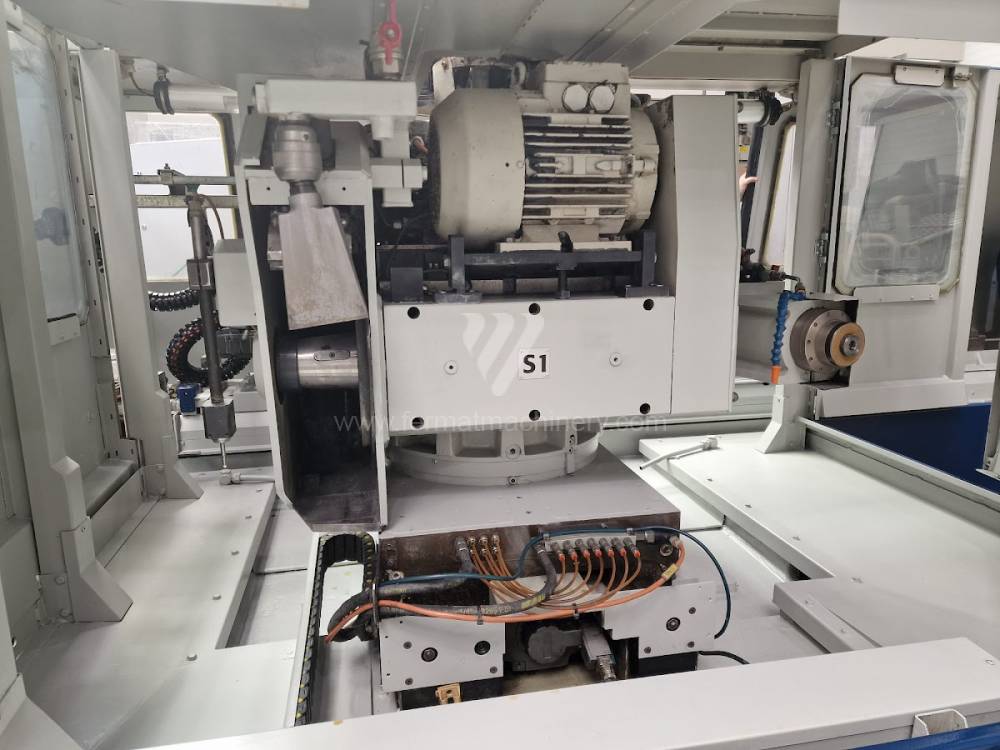

S1 Grinding wheel: 500 x 100 x 203.2 mm
Max. peripheral speed of grinding wheel: 50 m/s
Programming wheel head swiveling range: -195 + 30 °
Min. programmable range of B axis: 0.0001°
Main spindle speed range: 6-900 rpm
Manual swiveling of headstock: 90°

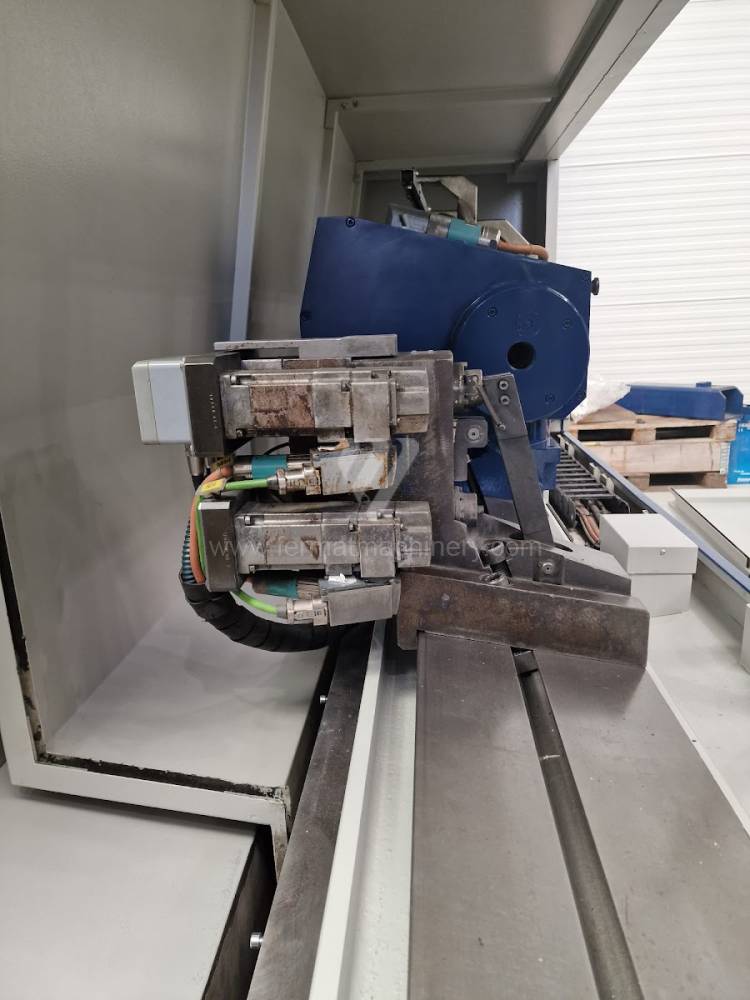

Programmable tailstock: 100 mm travel
X-axis travel: 375 mm
Max. grinding dia with used grinding wheel: 350 mm
Min. grinding dia with used grinding wheel: 0 mm

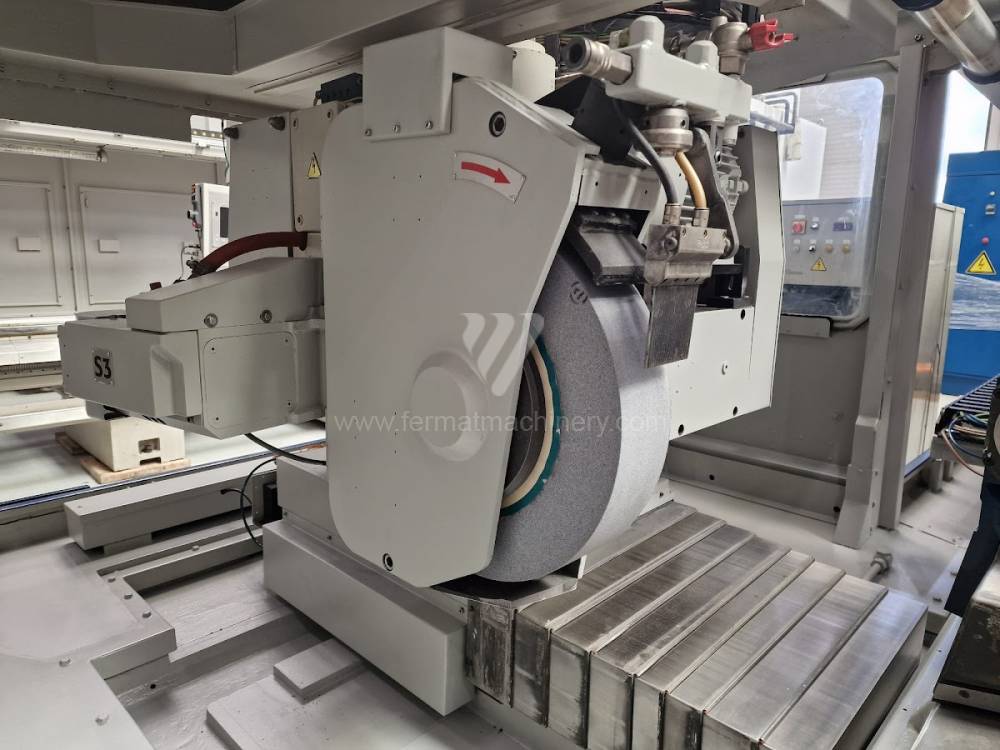

S3 Internal grinding: 25-60 m/s
Table travel: 3200 mm
Table Feed: 0.001 - 4000 mm/min
Rapid feed of table: 9m/min
Tilting of Table: +- 4/-2
