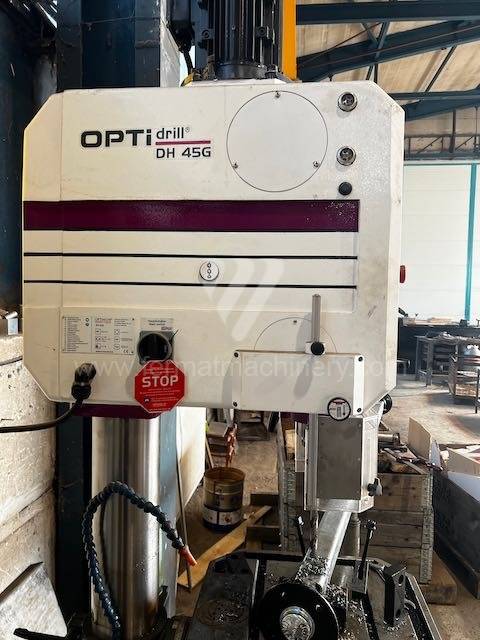

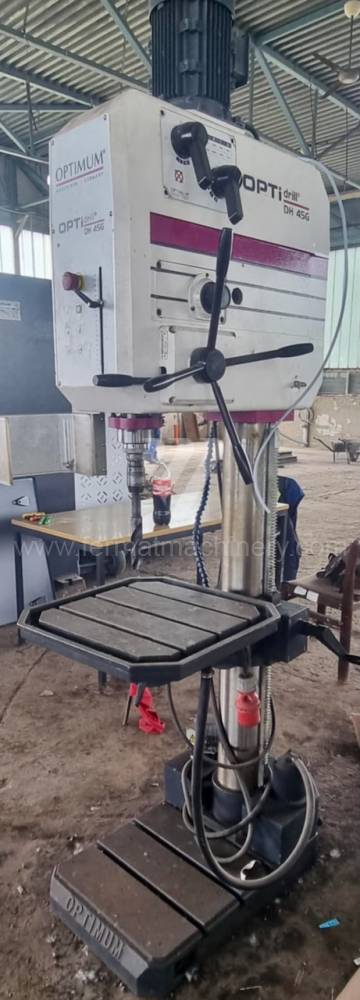

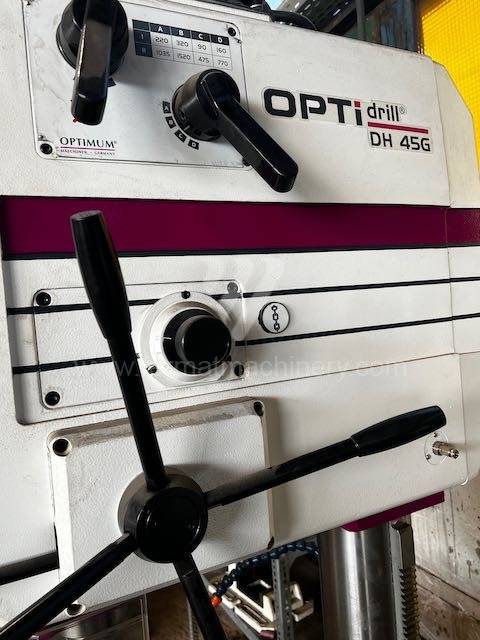

Boring and drilling machines / Peedestal / OPTIdrill DH 45G
Boring and drilling machines / Peedestal / OPTIdrill DH 45G Boring and drilling machines / Peedestal / OPTIdrill DH 45G
Boring and drilling machines / Peedestal / OPTIdrill DH 45G
Boring and drilling machines / Peedestal / OPTIdrill DH 45G Boring and drilling machines / Peedestal / OPTIdrill DH 45G

Boring and drilling machines / Peedestal / OPTIdrill DH 45G

  • Inventory number 261035
  • Machine type OPTIdrill DH 45G
  • Producer OPTIMUM
  • YOM 2022
Max. drilling diameter40 mm
Spindle taperMK4 .
Main motor power2,2 kW
Spindle speed90 - 1520 /min.
Throat170 mm
Table dimensions530x530 mm
Machine dimensions l x w x h880x595x2445 mm
Machine weight550 kg

Subject to change of technical parameters.


Description

The machine is in excellent, like‑new technical condition. It can be tested by prior arrangement. Heavy-duty gearbox drilling machine with thread tapping device (up to M35). Spindle feed.
