Borers horizontal / Table - diameter of spindle to 90 mm / WFM 100E
We are sorry. This product is no longer available. Below you can choose from the similar products.
Show products in the same category
Similar machines
| YOM: | 1988 |
| Diameter of working spindle | 80 mm |
| Travel X-axis | 1600 mm |
| Travel Y-axis | 1000 mm |
| Travel Z-axis | - mm |
| Spindle travel - W axis | 950 mm |
| Spindle speed | 14 - 2240 /min. |
| Spindle taper | ISO 50 . |
| Tool magazine | NO |
| Control system | NO |
| Cooling through spindle | NO |
| Clamping area of table | 850 x 1600 mm |
| Main motor power | 19,3 kW |
| Machine dimensions l x w x h | 6800 x 6350 x 4155 mm |
| Machine weight | 23 000 kg |
| Control system Siemens | Sinumerik 840 D |
WFQ 80 NCA
TOS Varnsdorf
Inventory number: 091466
| YOM: | 1981 |
| Control system | NO |
| Diameter of working spindle | 90 mm |
| Travel X-axis | 1250 mm |
| Travel Y-axis | 900 mm |
| Spindle speed | 0 - 1120 /min. |
| Cooling through spindle | NO |
| Spindle travel - W axis | 680 mm |
| Travel Z-axis | 1000 mm |
| Tool magazine | NO |
| Spindle taper | ISO 40 . |
| Max. load of table | 3000 kg |
| Clamping area of rotary table | 1000 x 1120 mm |
| Machine weight | 10 000 kg |
| Space of machine | 5000 x 2500 x 2800 mm |
WHN 9 B
TOS Varnsdorf
Inventory number: 231135
| YOM: | 1975 |
| Control system | NO |
| Diameter of working spindle | 90 mm |
| Travel X-axis | 1250 mm |
| Travel Y-axis | 900 mm |
| Spindle speed | 0 - 1120 /min. |
| Cooling through spindle | NO |
| Spindle travel - W axis | 680 mm |
| Travel Z-axis | 1000 mm |
| Tool magazine | NO |
| Spindle taper | ISO 40 . |
| Max. load of table | 3000 kg |
| Clamping area of rotary table | 1000 x 1120 mm |
| Machine weight | 10 000 kg |
WHN 9 B
TOS Varnsdorf
Inventory number: 231563
| YOM: | 1975 |
| Control system | YES |
| Control system Heidenhain | TNC 355 |
| Diameter of working spindle | 90 mm |
| Travel X-axis | 1250 mm |
| Travel Y-axis | 900 mm |
| Spindle speed | 0 - 1120 /min. |
| Cooling through spindle | NO |
| Spindle travel - W axis | 680 mm |
| Travel Z-axis | 1000 mm |
| Tool magazine | |
| Spindle taper | ISO 50 . |
| Clamping area of table | 1000 x 1120 mm |
| Max. weight of workpiece | 3000 kg |
| Machine weight | 12000 kg |

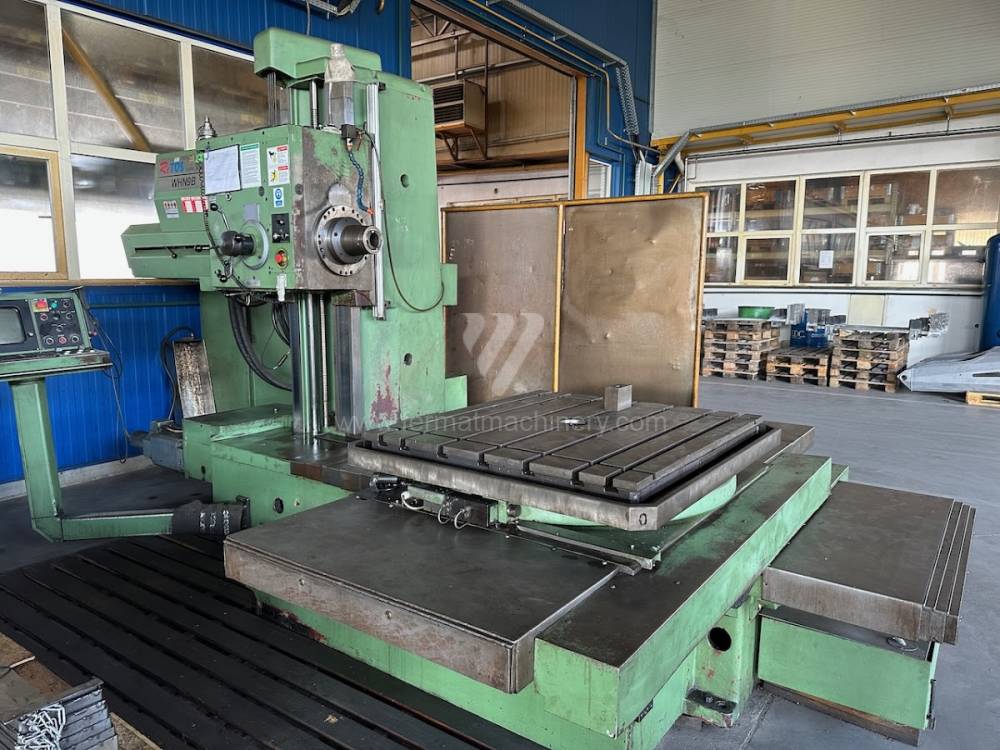

WHN 9 B CNC
TOS Varnsdorf
Inventory number: 241127
| YOM: | 1984 |
| Control system | NO |
| Diameter of working spindle | 75 mm |
| Travel X-axis | 1250 mm |
| Headstock travel (Y) | 900 mm |
| Travel Z-axis | 1000 mm |
| Table dimensions | 950x950 mm |
| Spindle travel - W axis | 560 mm |
| Main motor power | 11 kW |
| Spindle taper | ISO 40 . |
| Machine dimensions l x w x h | 4522x3359x2800 mm |
| Machine weight | 10700 kg |

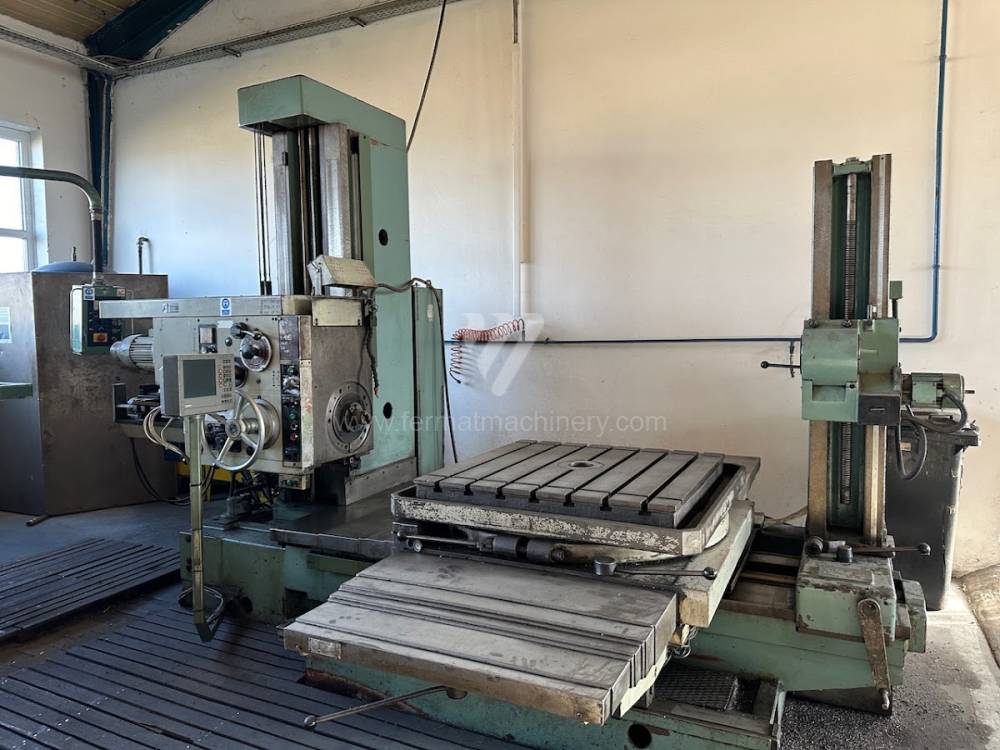

W 75
TOS Varnsdorf
Inventory number: 241128
| YOM: | 1983 |
| Control system | NO |
| Diameter of working spindle | 63 mm |
| Travel X-axis | 1000 mm |
| Travel Y-axis | 710 mm |
| Spindle speed | 18 - 1800 /min. |
| Cooling through spindle | NO |
| Spindle travel - W axis | 560 mm |
| Travel Z-axis | 1000 mm |
| Tool magazine | NO |
| Spindle taper | Morse 4 . |
| Clamping area of table | 800x800 mm |
| Main motor power | 5,5 kW |
| Machine dimensions l x w x h | 4050x2100x2280 mm |
| Machine weight | 7600 kg |

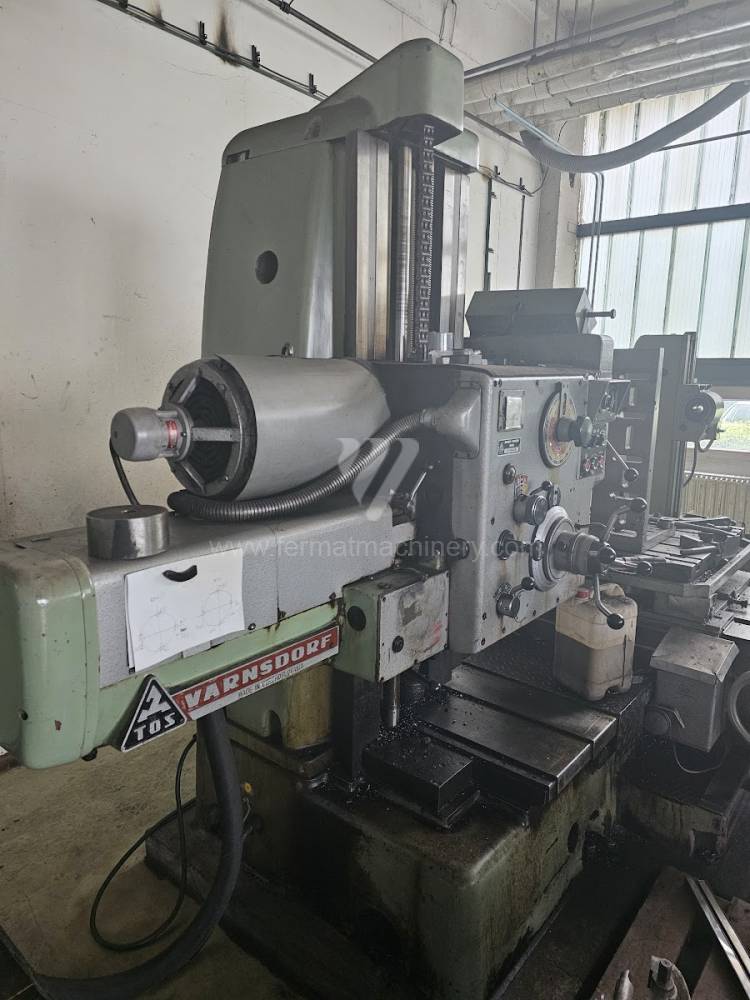

WH 63
TOS Varnsdorf
Inventory number: 241286
| YOM: | 1987 |
| Control system | NO |
| Diameter of working spindle | 75 mm |
| Travel X-axis | 1250 mm |
| Travel Y-axis | 900 mm |
| Travel Z-axis | 1000 mm |
| Table dimensions | 950x950 mm |
| Spindle travel - W axis | 560 mm |
| Main motor power | 11 kW |
| Spindle taper | ISO 40 . |
| Machine dimensions l x w x h | 4522x3359x2800 mm |
| Machine weight | 10700 kg |
| Spindle speed | 18 - 1800 /min. |
W 75
TOS Varnsdorf
Inventory number: 241998
| YOM: | 0 |
| Control system | NO |
| Diameter of working spindle | 63 mm |
| Travel X-axis | 1000 mm |
| Travel Y-axis | 710 mm |
| Spindle speed | - /min. |
| Cooling through spindle | NO |
| Spindle travel - W axis | 560 mm |
| Travel Z-axis | 1000 mm |
| Tool magazine | NO |
| Spindle taper | Morse4 . |
| Clamping area of table | 800 x 800 mm |
| Main motor power | 5.5 kW |
| Machine dimensions l x w x h | 4050x2100x2280 mm |
| Machine weight | 7600 kg |

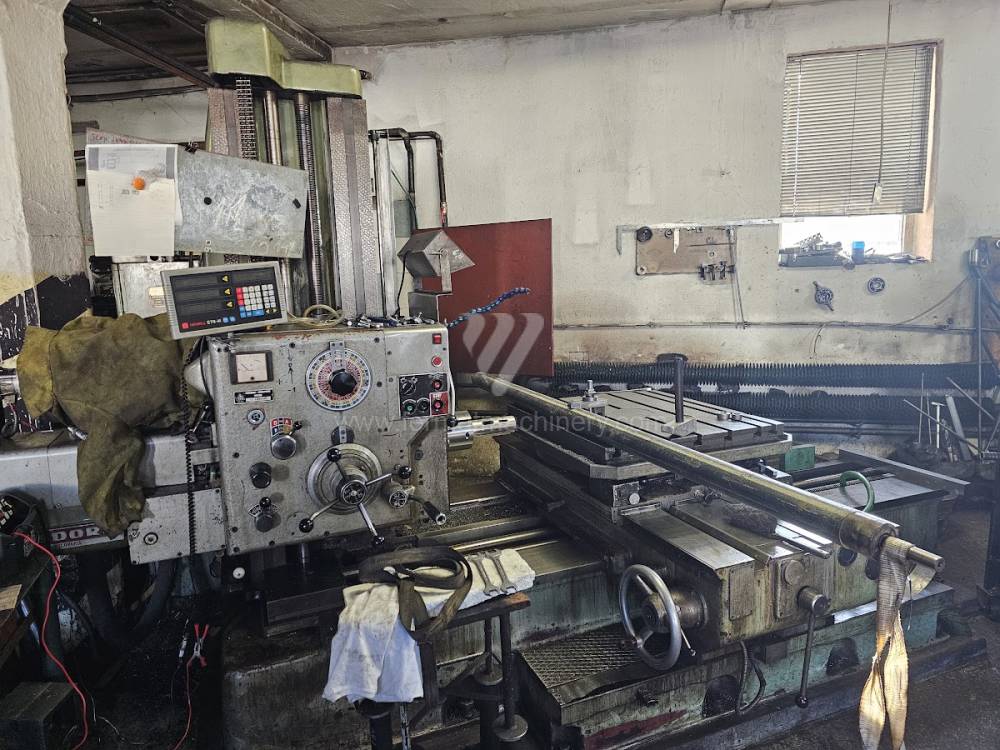

WH 63
TOS Varnsdorf
Inventory number: 241329
| YOM: | 0 |
| Control system | NO |
| Diameter of working spindle | 90 mm |
| Travel X-axis | 1000 mm |
| Travel Y-axis | 900 mm |
| Spindle speed | 0 - 1400 /min. |
| Cooling through spindle | NO |
| Spindle travel - W axis | 710 mm |
| Travel Z-axis | 800 mm |
| Tool magazine | NO |
| Spindle taper | MORSE 5 . |
| Main motor power | 7,5 kW |
| Table dimensions | 1000 x 1120 mm |
| Machine dimensions l x w x h | 3900 x 2500 x 2650 mm |
| Machine weight | 9000 kg |

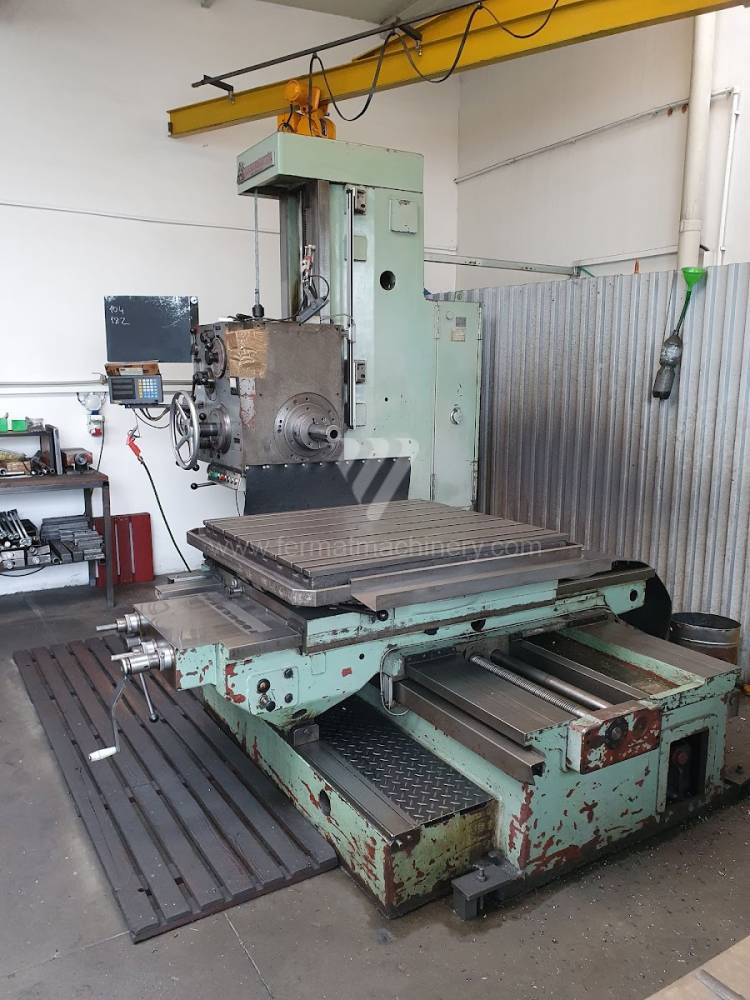

W 9
TOS Varnsdorf
Inventory number: 242095
| YOM: | 1975 |
| Control system | NO |
| Diameter of working spindle | 90 mm |
| Travel X-axis | 1000 mm |
| Travel Y-axis | 900 mm |
| Spindle speed | 0 - 1400 /min. |
| Cooling through spindle | NO |
| Spindle travel - W axis | 710 mm |
| Travel Z-axis | 800 mm |
| Tool magazine | NO |
| Spindle taper | MORSE 5 . |
| Main motor power | 7,5 kW |
| Table dimensions | 1000 x 1120 mm |
| Machine dimensions l x w x h | 3900 x 2500 x 2650 mm |
| Machine weight | 9000 kg |
W 9
TOS Varnsdorf
Inventory number: 241843
| YOM: | 1988 |
| Control system | NO |
| Diameter of working spindle | 80 mm |
| Travel X-axis | 1600 mm |
| Travel Y-axis | 1000 mm |
| Spindle speed | 14 - 2240 /min. |
| Cooling through spindle | NO |
| Spindle travel - W axis | 950 mm |
| Travel Z-axis | - mm |
| Tool magazine | NO |
| Spindle taper | ISO 50 . |
| Clamping area of table | 850 x 1600 mm |
| Main motor power | 19,3 kW |
| Machine dimensions l x w x h | 6800 x 6350 x 4155 mm |
| Machine weight | 23 000 kg |
| Control system Siemens | Sinumerik 840 D |
