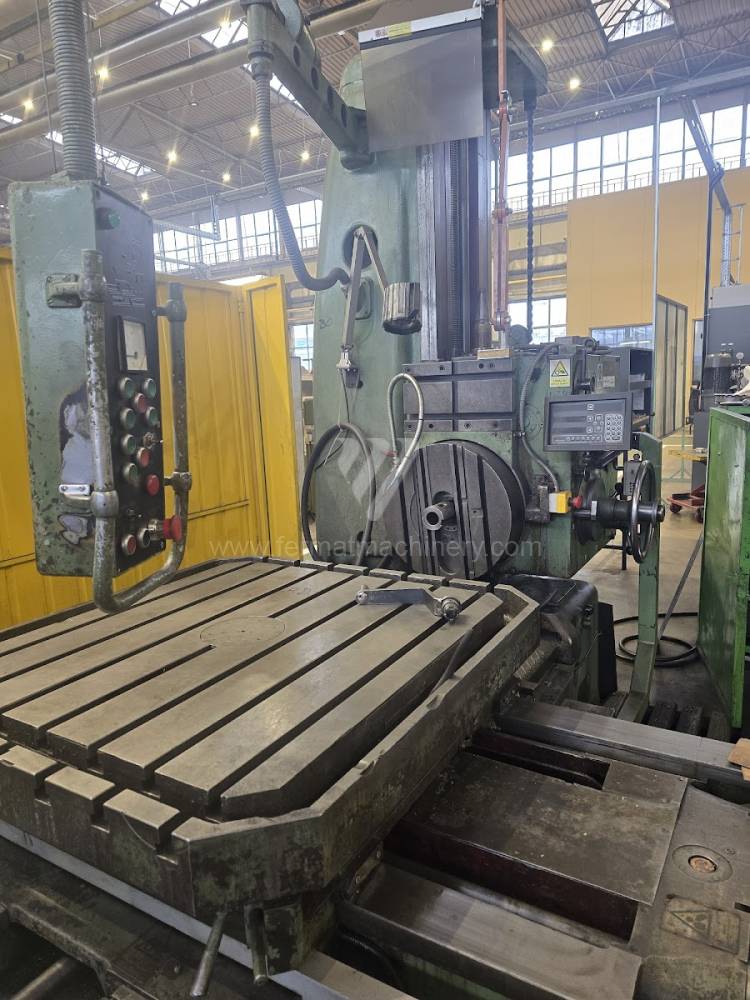

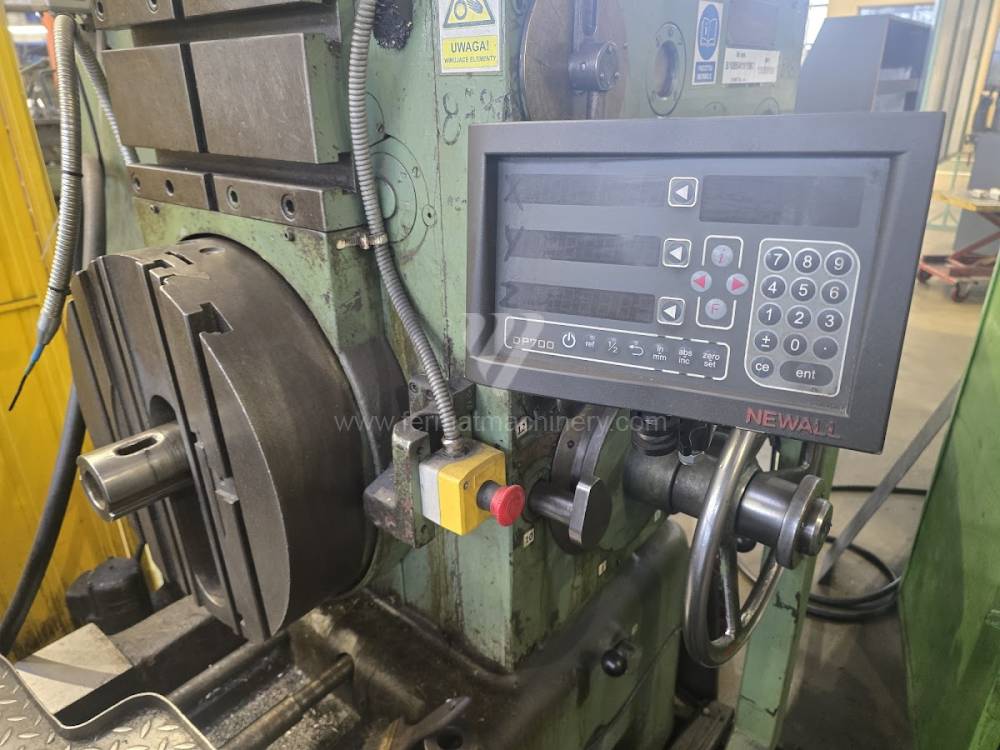

Borers horizontal / Table - diameter of spindle to 90 mm / WFA 80
Borers horizontal / Table - diameter of spindle to 90 mm / WFA 80
Borers horizontal / Table - diameter of spindle to 90 mm / WFA 80
Borers horizontal / Table - diameter of spindle to 90 mm / WFA 80

Borers horizontal / Table - diameter of spindle to 90 mm / WFA 80

  • Inventory number 261211
  • Machine type WFA 80
  • Producer DEFUM
Diameter of working spindle80 mm
Travel X-axis1250 mm
Travel Y-axis850 mm
Spindle speed6 - 1400 /min.
Cooling through spindleNO
Spindle travel - W axis700 mm
Travel Z-axis1000 mm
Tool magazineNO
Spindle taperMorse 5 .
Clamping area of table1100 x 900 mm
Machine weight7500 kg
Machine dimensions l x w x h4650 x 2250 x 2650 mm

Subject to change of technical parameters.


Description

The machine can be retested and is functional.
