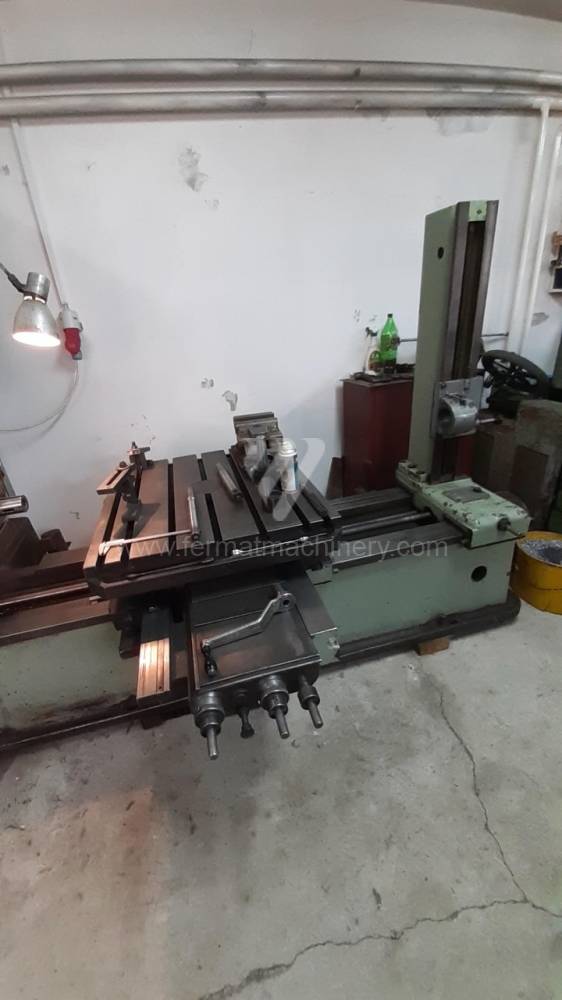

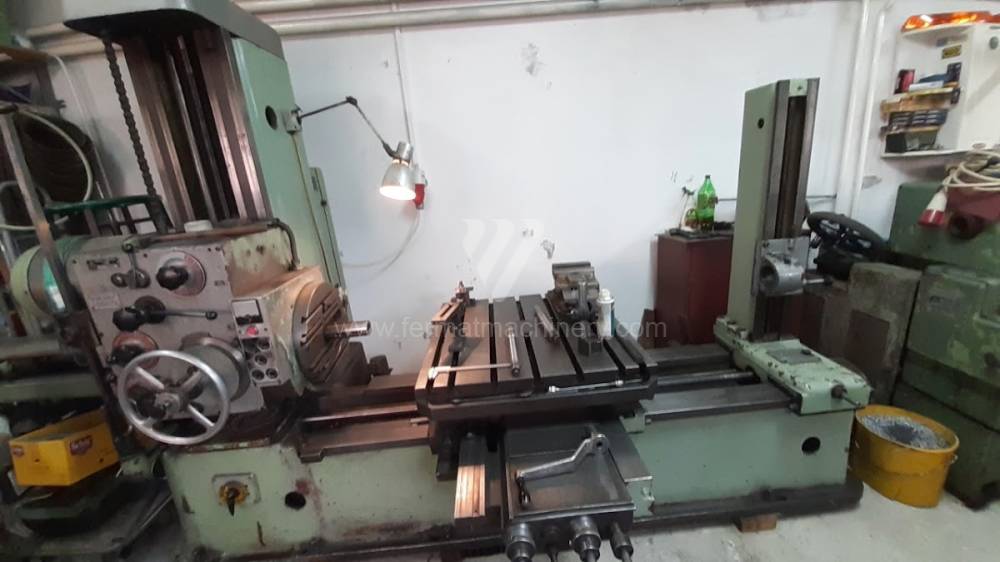

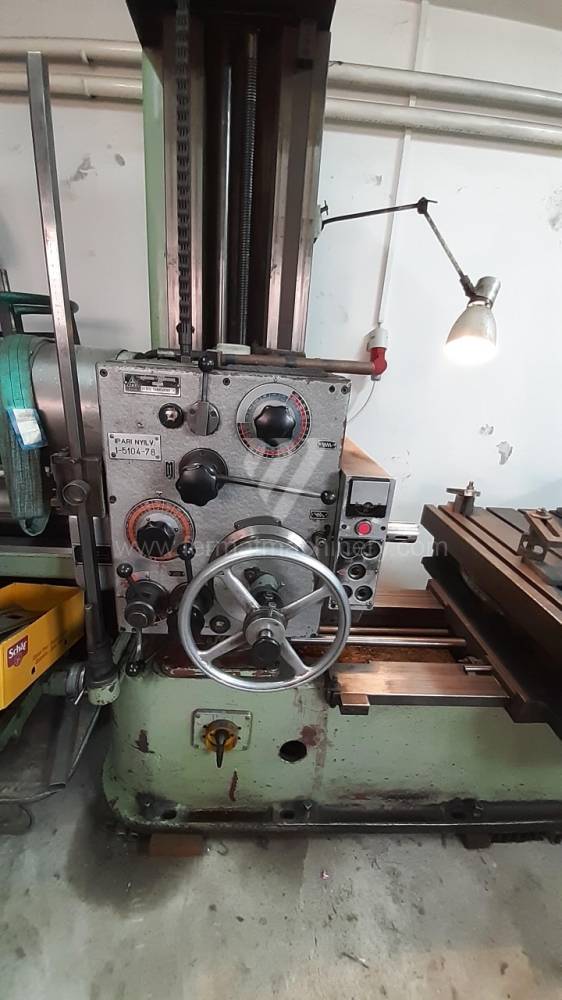

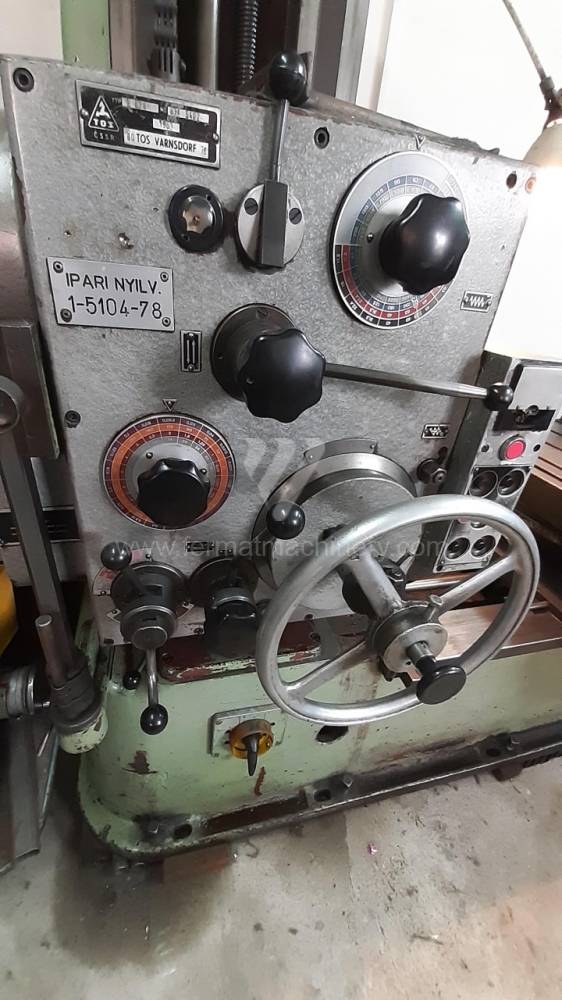

Borers horizontal / Table - diameter of spindle to 90 mm / H 63 A
Borers horizontal / Table - diameter of spindle to 90 mm / H 63 A Borers horizontal / Table - diameter of spindle to 90 mm / H 63 A Borers horizontal / Table - diameter of spindle to 90 mm / H 63 A Borers horizontal / Table - diameter of spindle to 90 mm / H 63 A Borers horizontal / Table - diameter of spindle to 90 mm / H 63 A
Borers horizontal / Table - diameter of spindle to 90 mm / H 63 A
Borers horizontal / Table - diameter of spindle to 90 mm / H 63 A Borers horizontal / Table - diameter of spindle to 90 mm / H 63 A Borers horizontal / Table - diameter of spindle to 90 mm / H 63 A Borers horizontal / Table - diameter of spindle to 90 mm / H 63 A Borers horizontal / Table - diameter of spindle to 90 mm / H 63 A

Borers horizontal / Table - diameter of spindle to 90 mm / H 63 A

  • Inventory number 261210
  • Machine type H 63 A
  • Producer TOS Varnsdorf
  • YOM 1963
Diameter of working spindle63 mm
Travel X-axis1050 mm
Travel Y-axis610 mm
Spindle speed8 - 1400 /min.
Cooling through spindleNO
Spindle travel - W axis560 mm
Travel Z-axis900 mm
Tool magazineNO
Spindle taper .
Clamping area of table880x800 mm
Machine weight7500 kg
Main motor power5,5 kW

Subject to change of technical parameters.


Description

The machine is in good technical condition and can be tested.
