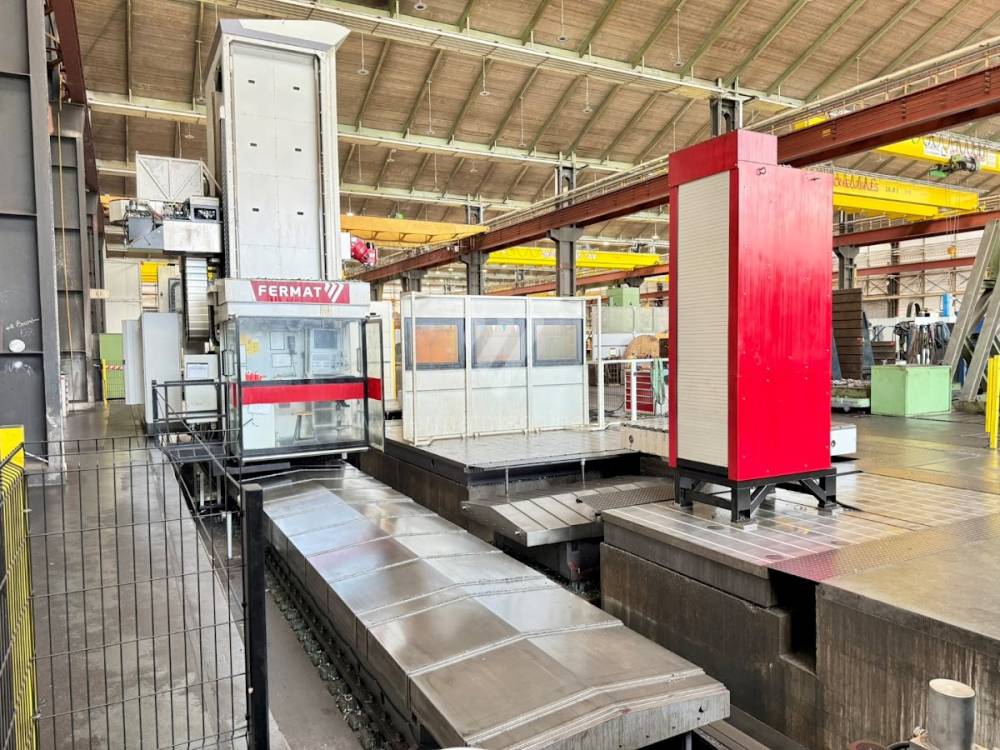

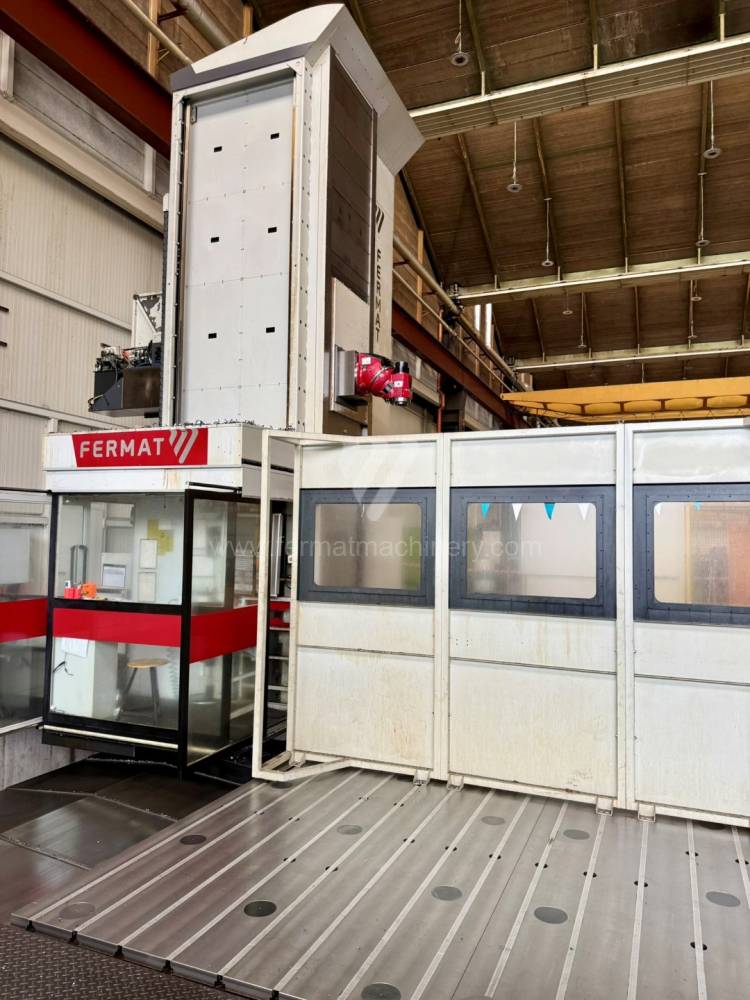

Borers horizontal / H - floor type / WRF Mill CNC

• Inventory number 261370
• Machine type WRF Mill CNC
• Producer Fermat
• YOM 2017

Subject to change of technical parameters.

Description

Headstock
Spindle power: 51/36 (40%/100%) KW
Spindle Torque: 1500 NM
Spindle speed: 5000 rpm
Spindle Taper: ISO 50
Ram size: 420 x 420 mm
C- axis integrated: 0.001° - continuous
Desh gearbox

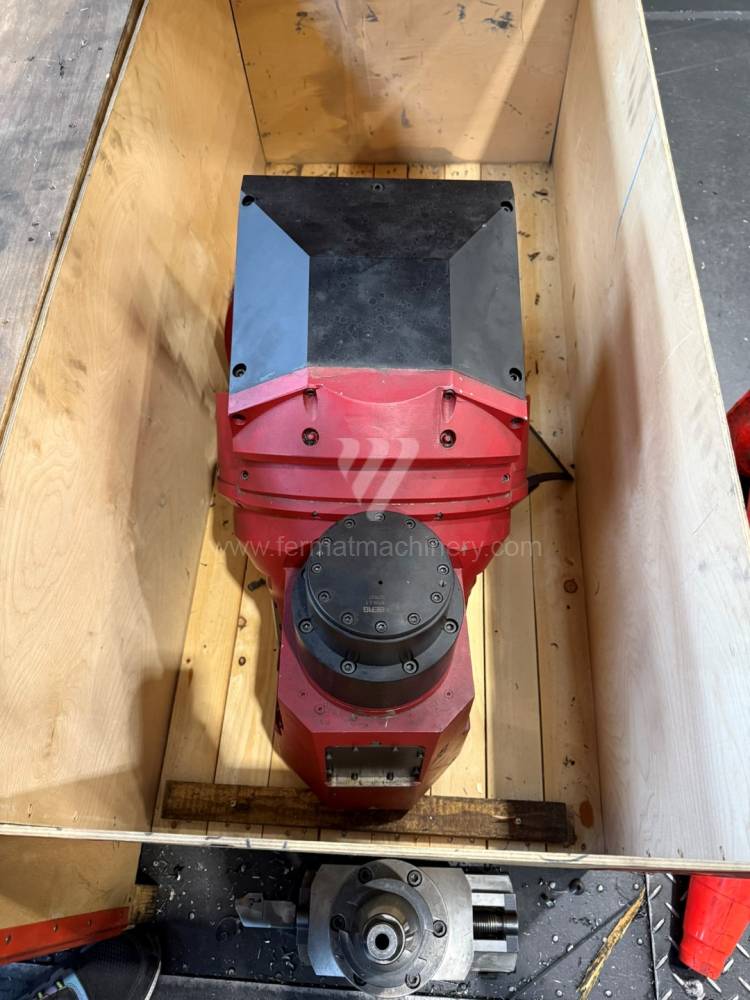

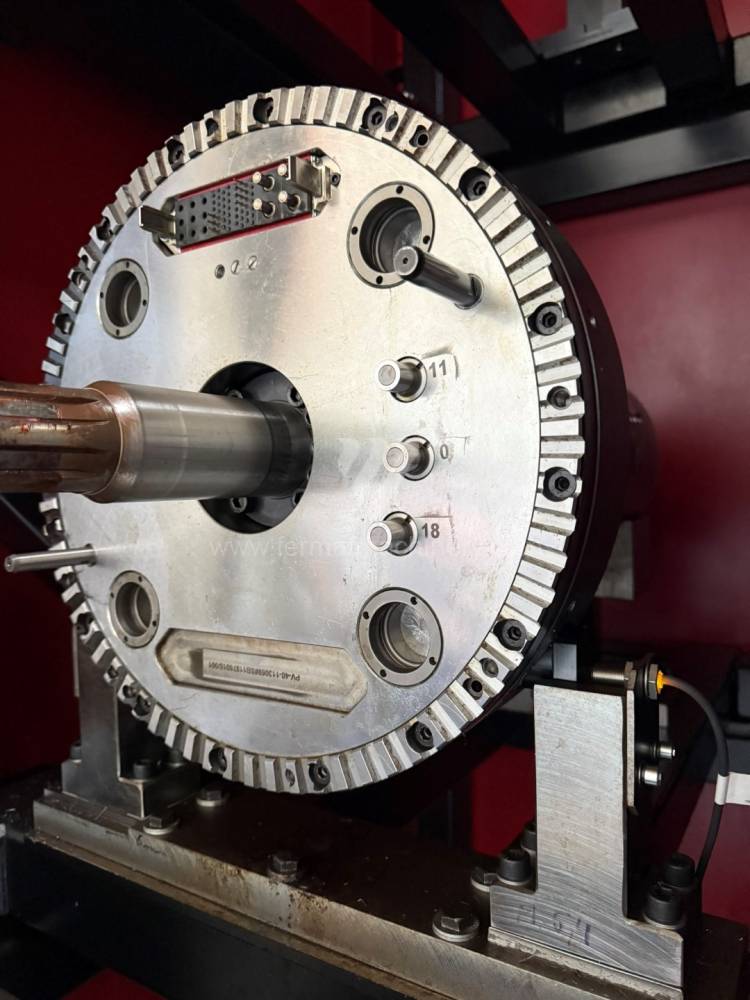

Heads and Head changer

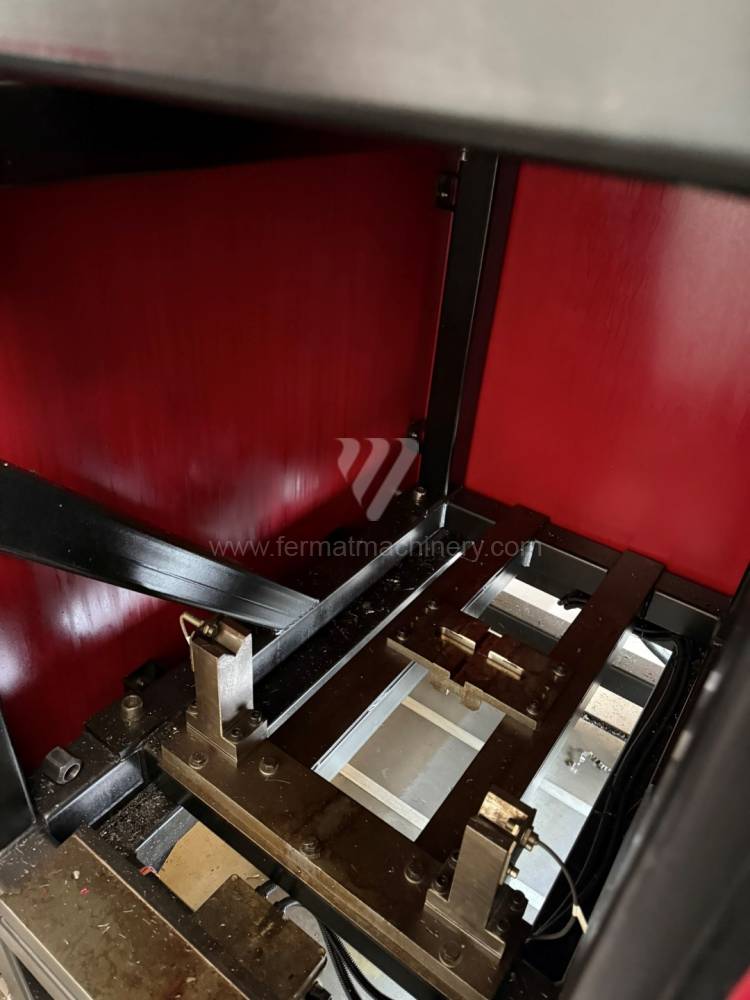

Automatic pickup station for: 3 places
Head 1: Uhami 30 continuous A and C axis 180°+, 180°-
Head 2: Uhami 30 continuous A and C axis 180°+, 180°- (New in 2022)
Head 3: horizontal spindle extension: 400 mm
Head 4: horizontal spindle extension: 800 mm
Head 5: ISO 40 vertical head to be mounted on horizontal spindle extension

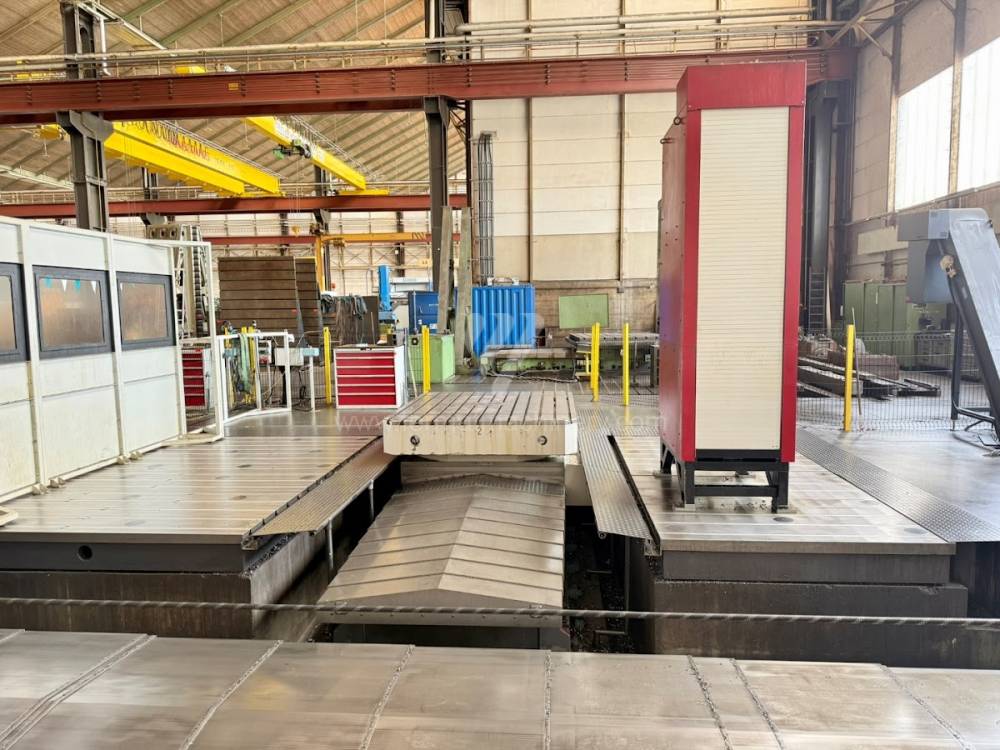

Tables
Table 1
Size: 3000 x 3000 mm
V- Travel: 2400 mm
Table load capacity: 50 Tonnes
Table 2
Size: 2500 x 2000 mm
V- Travel: 2400 mm
Table load capacity: 30 Tonnes

Additional information:
Floor plates: 2 pcs. 4000 mm x 2000 mm, 2 pcs. 5000 mm x 2000 mm

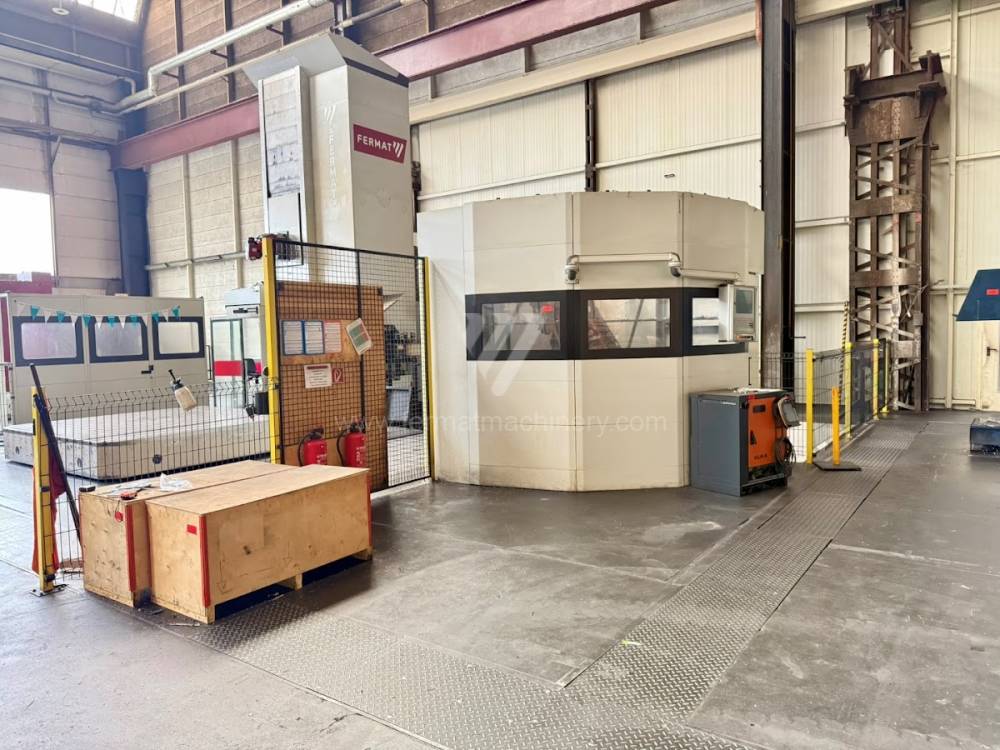

Working Area separation
Tool changer Robot type
Spindle through coolant
Chip conveyor
3D probe

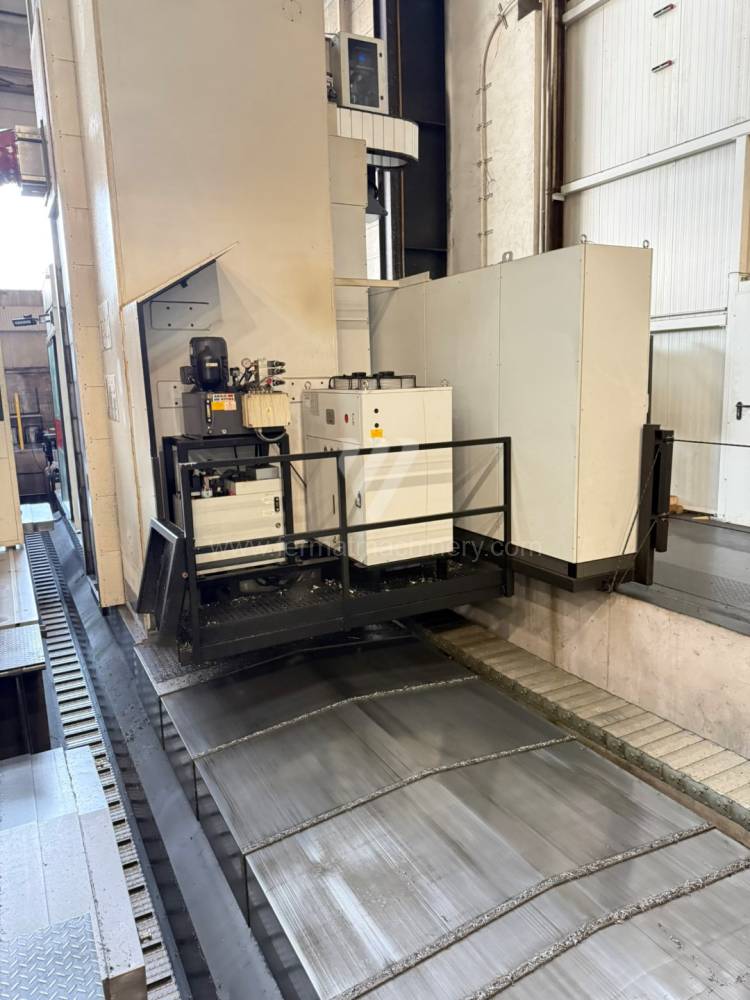

Movable operator platform
Wireless Handwheel
CE marking
Approx. 14000 programming hours
Continous heads, continous tables
