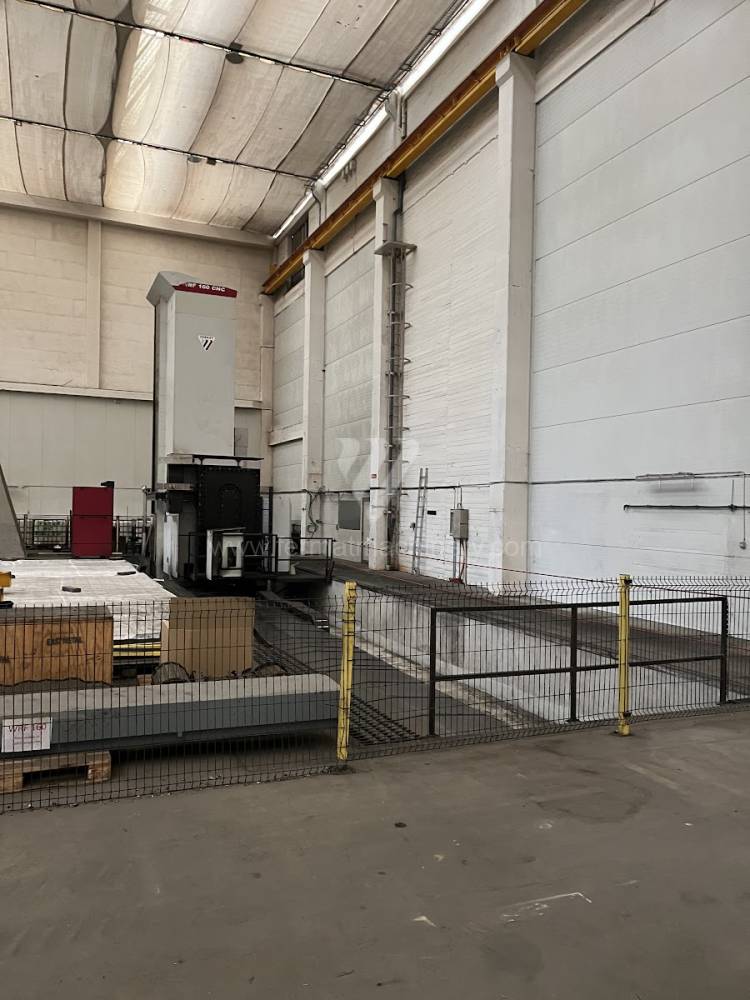

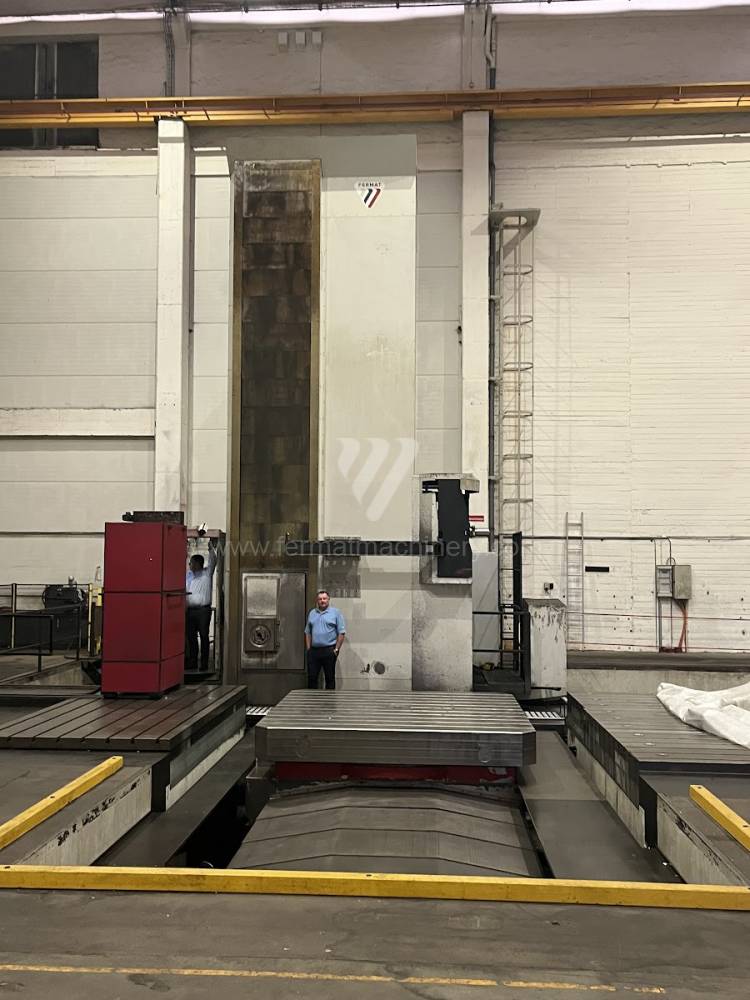

Borers horizontal / H - floor type / WRF 160 CNC
-
Inventory number 251567
-
Machine type WRF 160 CNC
-
Producer Fermat
-
YOM 2014
| Control system Siemens | Sinumerik 840 D |
| Diameter of working spindle | 160 mm |
| Travel X-axis | 14800 mm |
| Travel Y-axis | 6000 mm |
| Spindle speed | 1 - 2500 /min. |
| Spindle travel - W axis | 1000 mm |
| Cooling through spindle | YES |
| Tool magazine | YES |
| Number of positions in magazine | 90 |
| Spindle taper | ISO 50 . |
| Z axis travel | 1200 mm/min |
Subject to change of technical parameters.
Description
CNC rotary table - B axis
3000 x 3000 mm
V axis: 3000 mm
80 tons capacity
Auto microindexed head A and C axis
Automatic pick up station
Touch probe
Chip conveyor
Oil separator for coolant
Operating hours 11.000 hours
