Bending machines / Tube / Pipebending 42

• Inventory number 261637
• Machine type Pipebending 42
• Producer Cansa makina
• YOM 2018

PRODUCT INQUIRY

Subject to change of technical parameters.

Description

Max. bending capacity – standard steel: 32 x 2 mm

• NC control system
• Max. bending angle: 190°
• Hydraulic clamping
• Hydraulically controlled mandrel
• Hydraulic collet

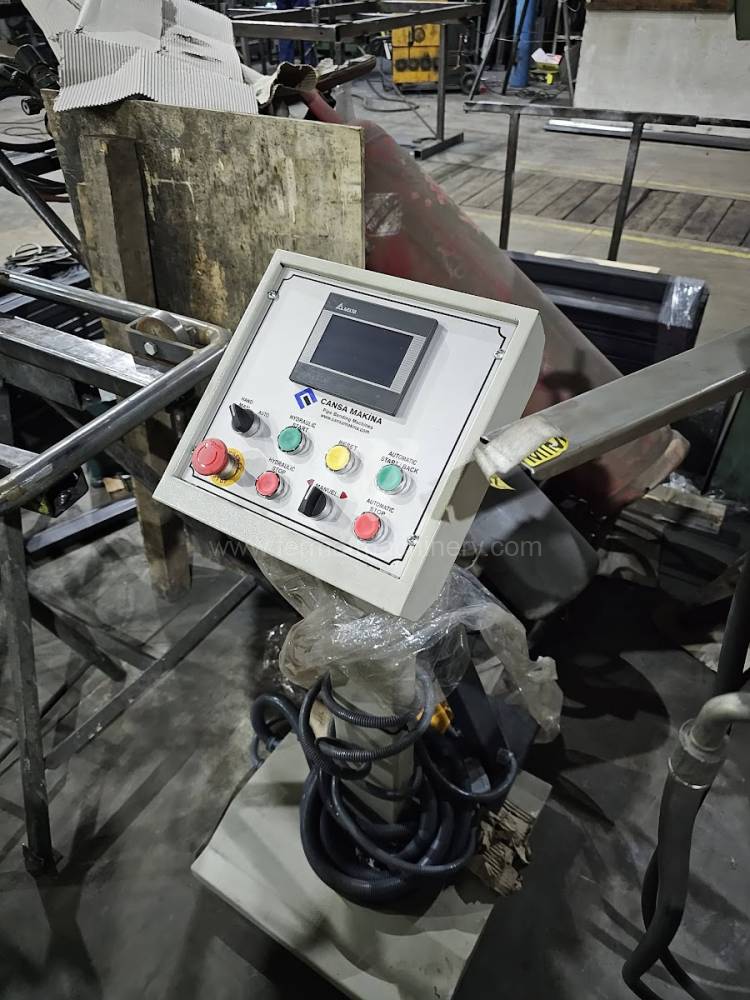

• 4.3 color touchscreen control system
• Display of current tube position (feed and rotation)
• Display of daily production on the control system screen
• Display of error messages on the control system screen
• Storage of created programs in the control system memory
• Capacity to store up to 100 bending programs
• Mandrel length: 2000 mm
• Max. hydraulic pressure: 120 bar
• Total motor power input: 4.4 kW
• Safety lock on the electrical cabinet
