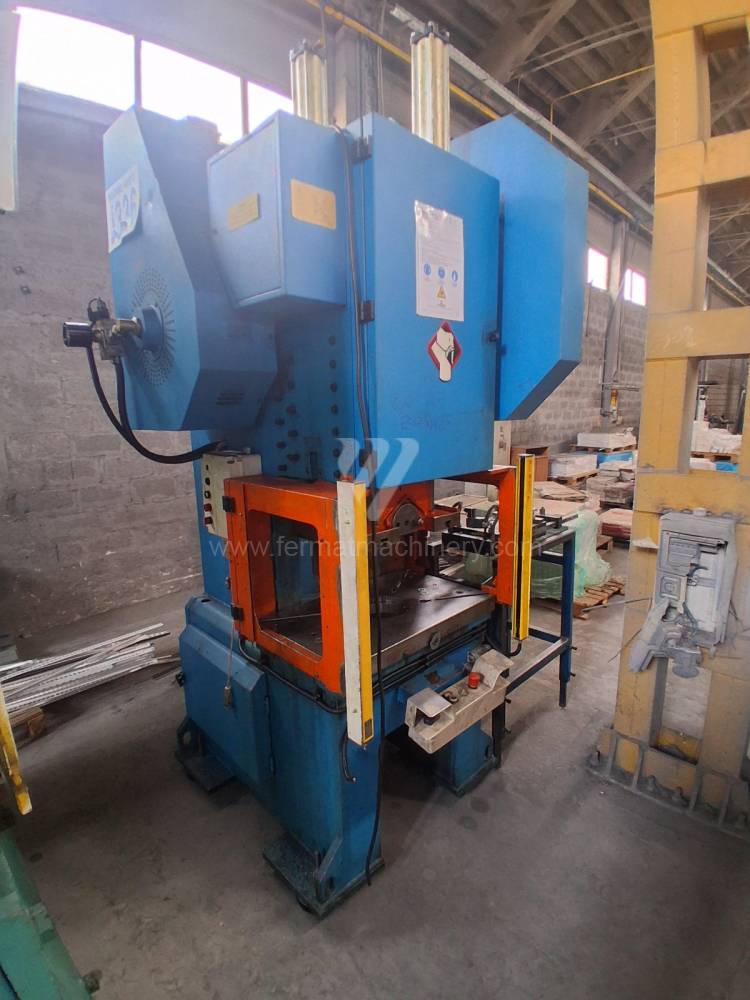

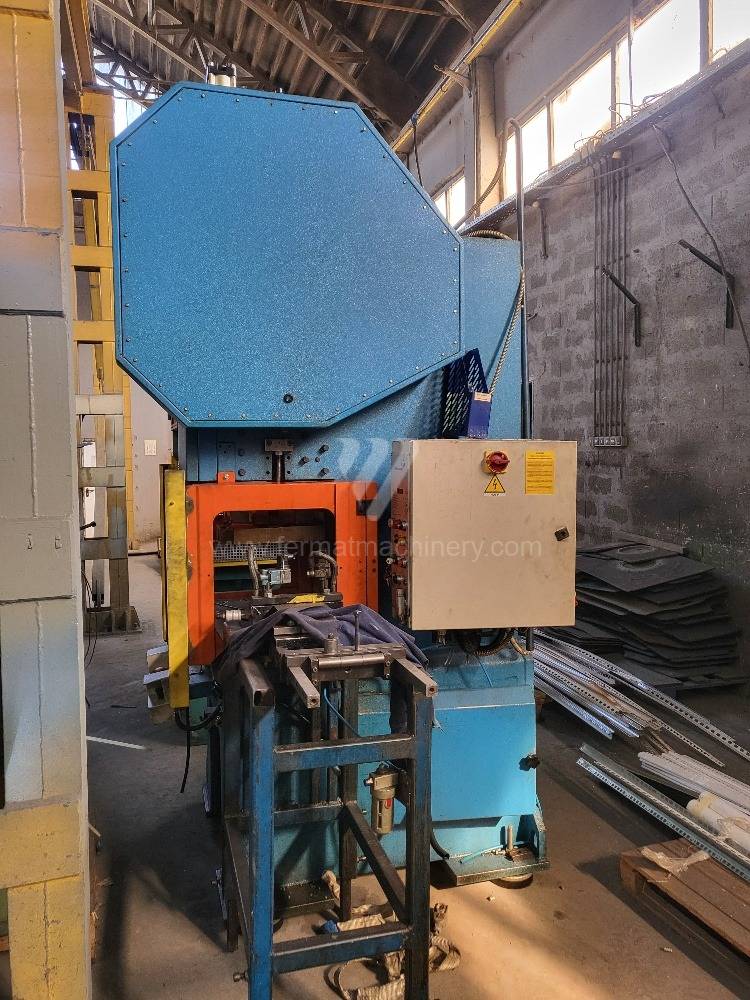

Пресс / Эксцентриковый менее 100т / T63R

• Инвентарный номер 261375
• Модель T63R
• Производитель SanGiacomo Presse
• Год изготовления 2004

Компания не несет ответственности за любые неточности или пробелы в информации на данном Сайте

Описание

Technical characteristics (model 2004)
• Force (capacity): 630 kN (63 tons).
• Number of strokes: Fixed at 70 strokes per minute (in the standard version).
• Adjustable stroke (stroke): From 12 mm to 140 mm.
• Table dimensions: 500 x 800 mm (some sources indicate 500 x 500 mm for specific sub-variants).
• Distance between table and drive: 450 mm (at top dead center and maximum stroke).
• Drive adjustment: 70 mm.
• Jaw depth: 260 mm.
• Motor power: 5.6 kW.
• Machine weight: approximately 5100 kg.

Main features and equipment
• Construction: Rigid steel monoblock frame, heat-treated to reduce stress and vibration.
• Reduction gear: The intermediate gear system allows full rated force to be reached before bottom dead center, ideal for more demanding sheet metal transformations.
• Forged shaft: Sangiacomo uses exclusively forged eccentric shafts, which provide greater resistance to shocks and vibrations compared to conventional shafts.

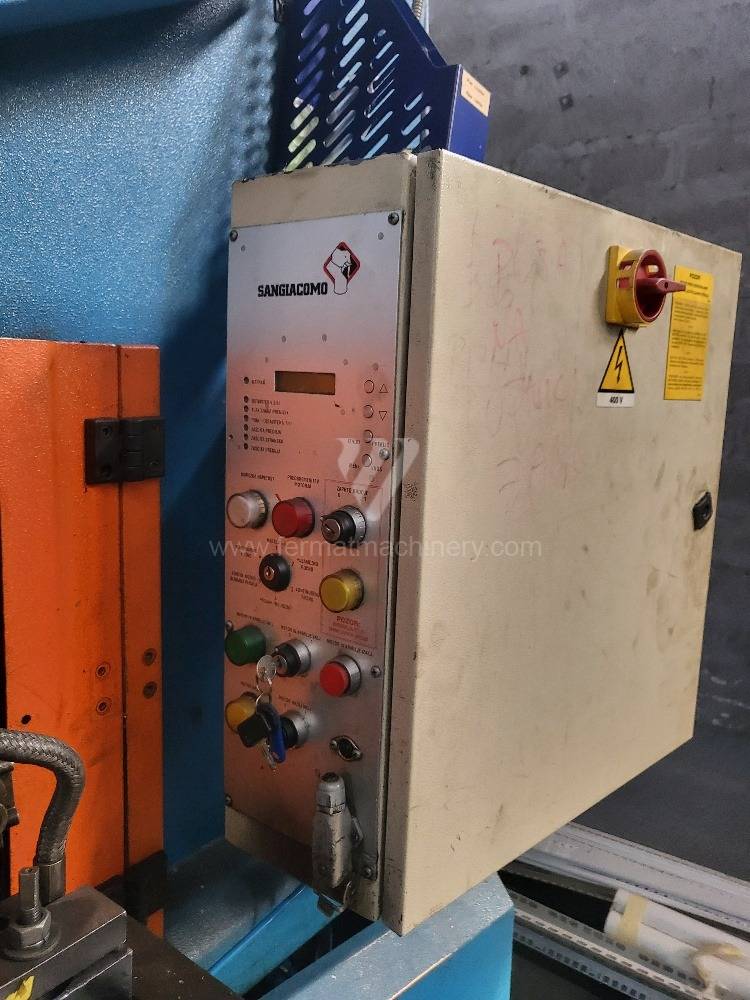

• Control: Equipped with a PLC controller (usually Siemens or Allen-Bradley) and Pilz safety devices.
• Safety and lubrication:
o Automatic hydraulic overload protection.
o Combined pneumatic clutch-brake.
o Automatic centralized lubrication system with adjustable flow.
• Flexibility: Suitable for punching, stamping and deep drawing.
