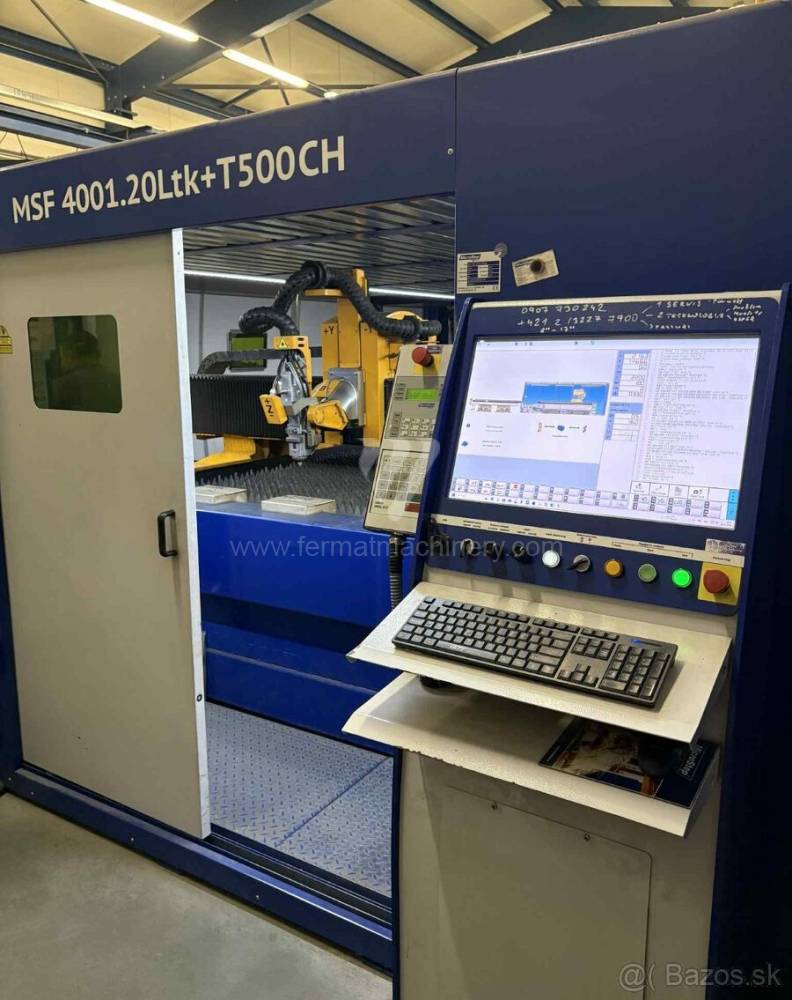

Maszyna do cięcia / Laser / MSF 4001.20Ltk+T500CH

• Numer inwentarzowy 261377
• Rodzaj maszyny MSF 4001.20Ltk+T500CH
• Producent Microstep
• Rok produkcji 2016

Zmiana parametrów technicznych zastrzeżona.

Opis

The machine is in good technical condition, under power, after agreement is possible to test it.

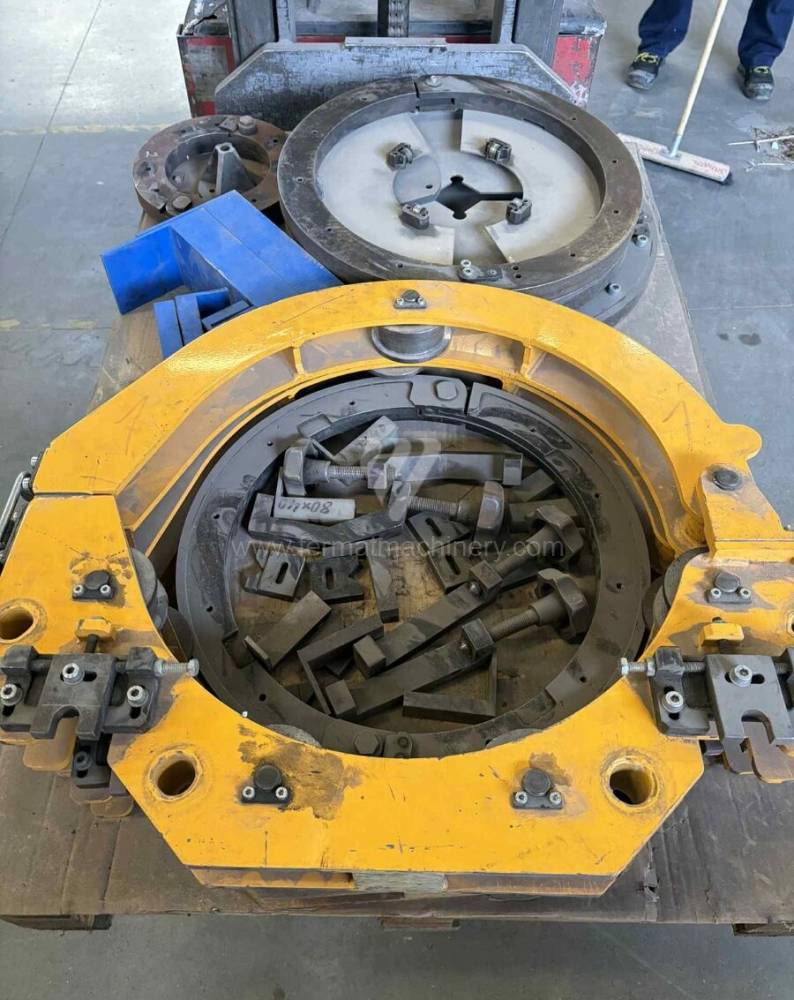

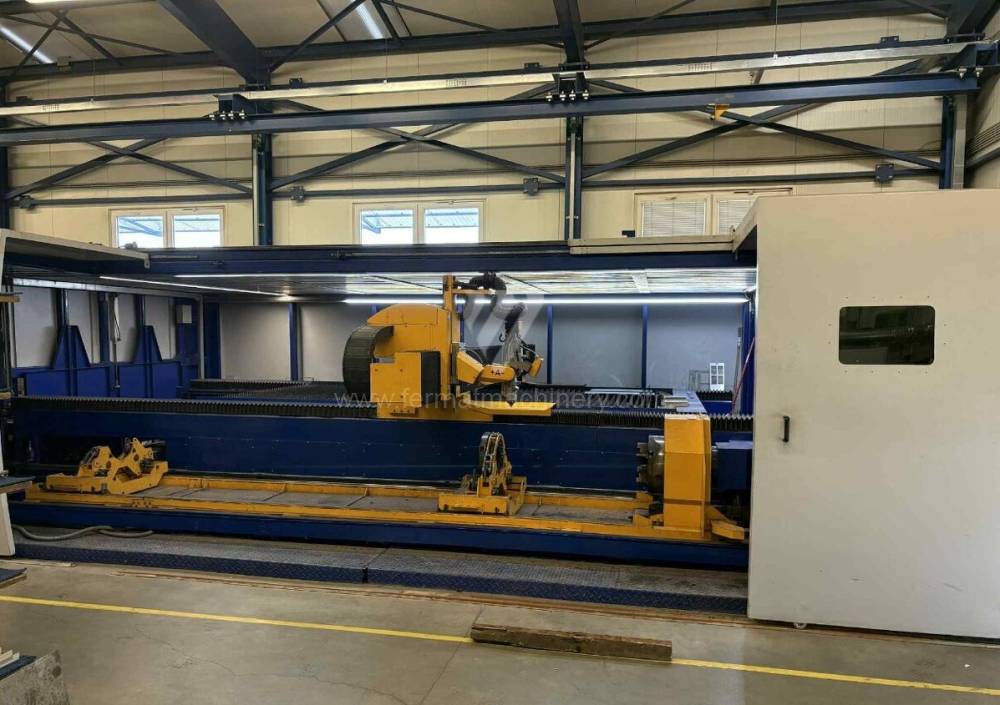

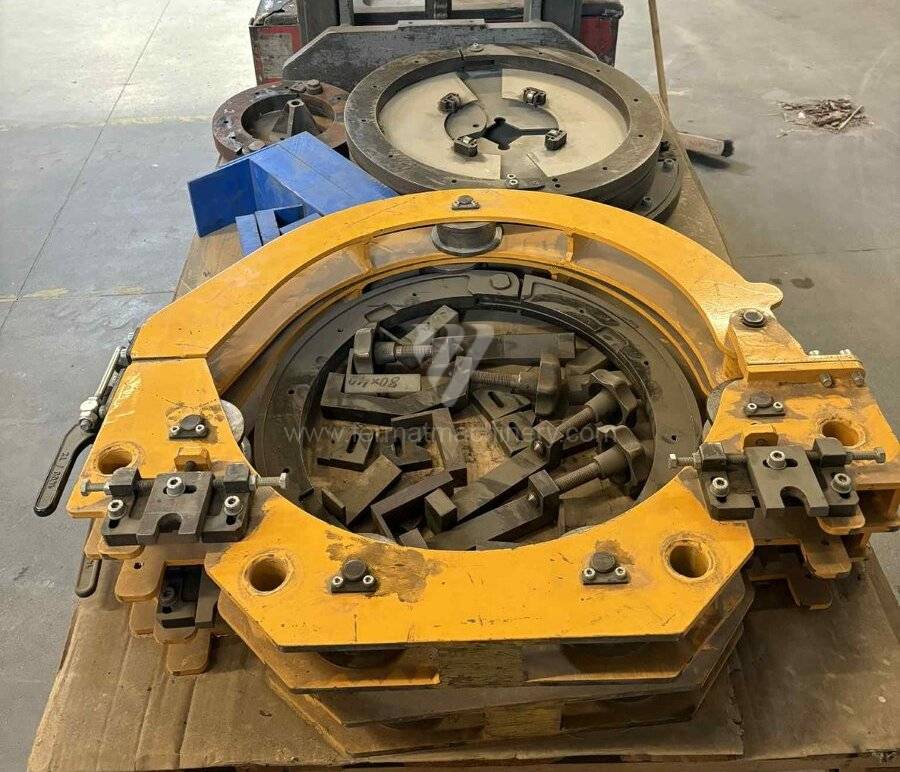

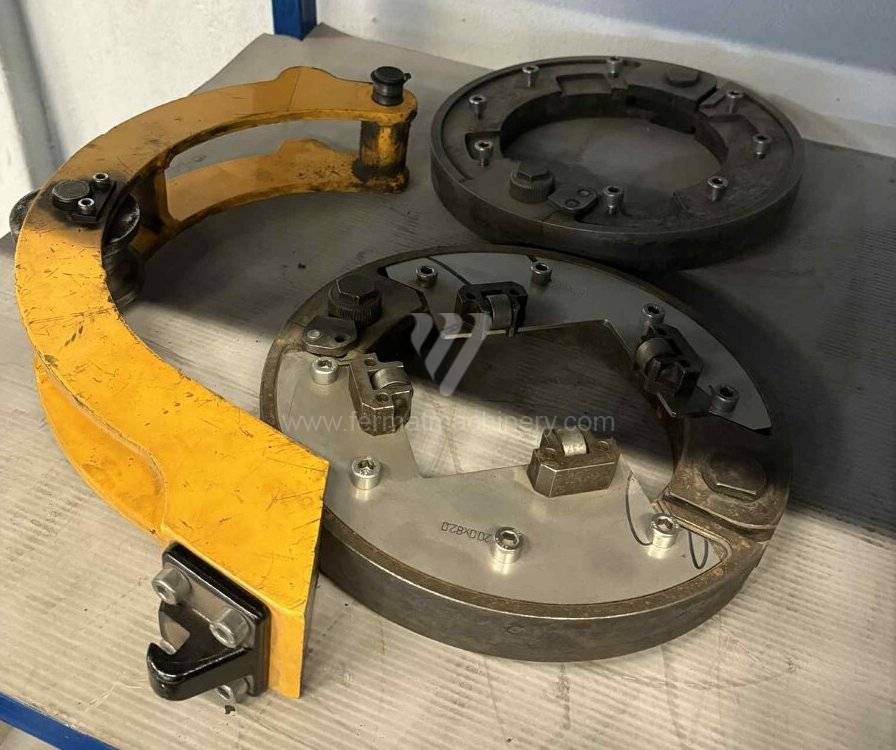

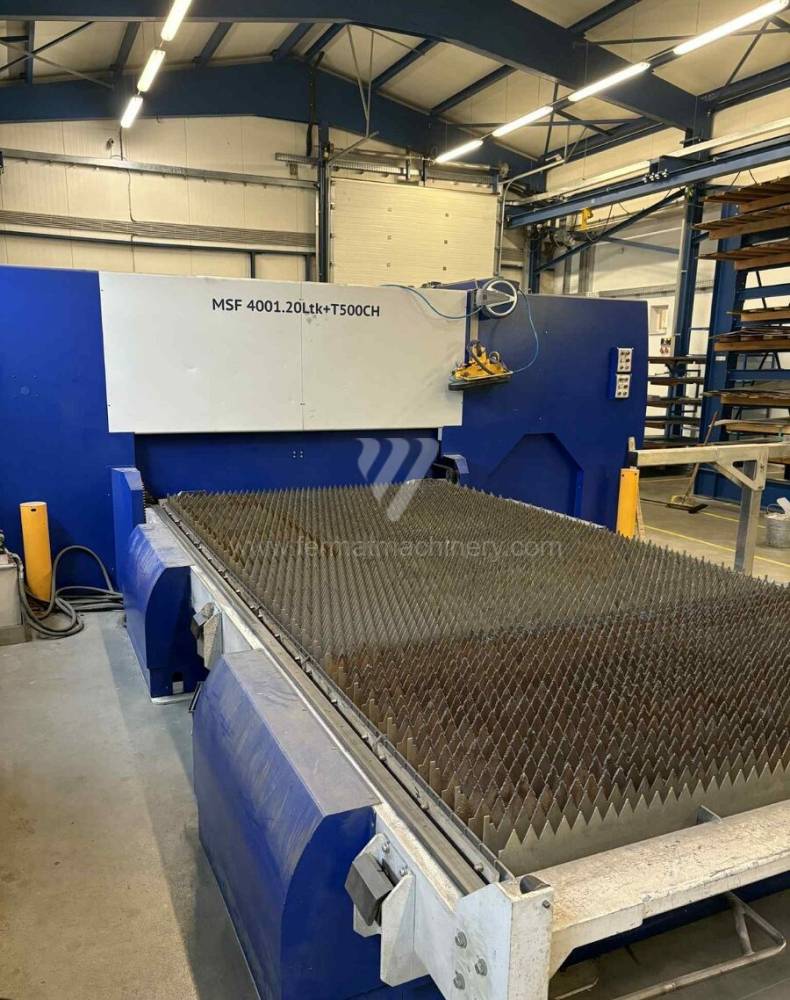

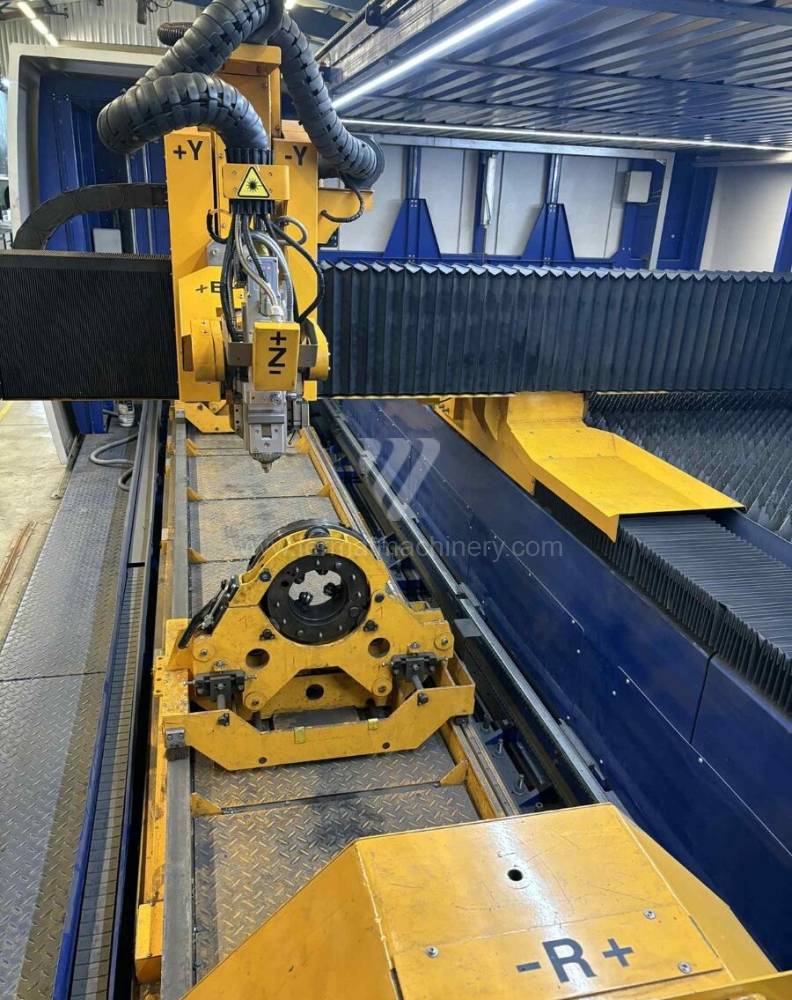

Working area 4000 x 2000mm + space for cutting pipes
Guides Linear guides Rexroth
Gear racks:

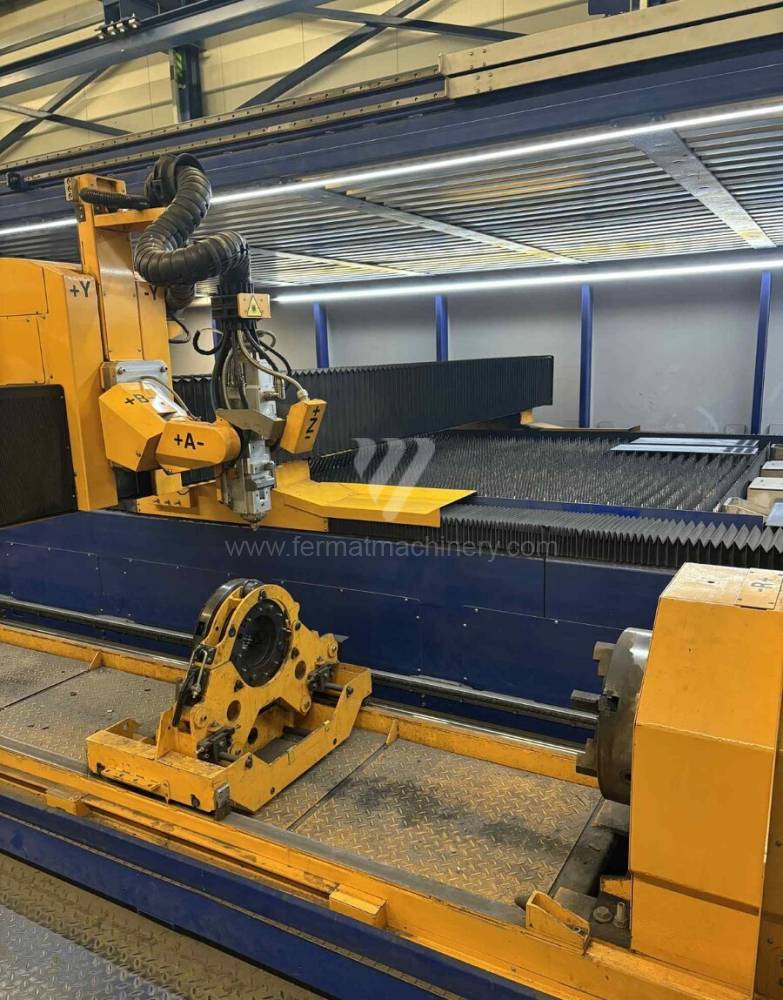

Precise ATLANTA helical gears on all axes, double-sided driven portal
STOBER gearboxes
Maintenance-free drives, processor-controlled AC-servos Panasonic
Max. positioning speed 130 m/min - one axis, 180 m/min simultaneously 2 axes.
Acceleration 10 m/s2

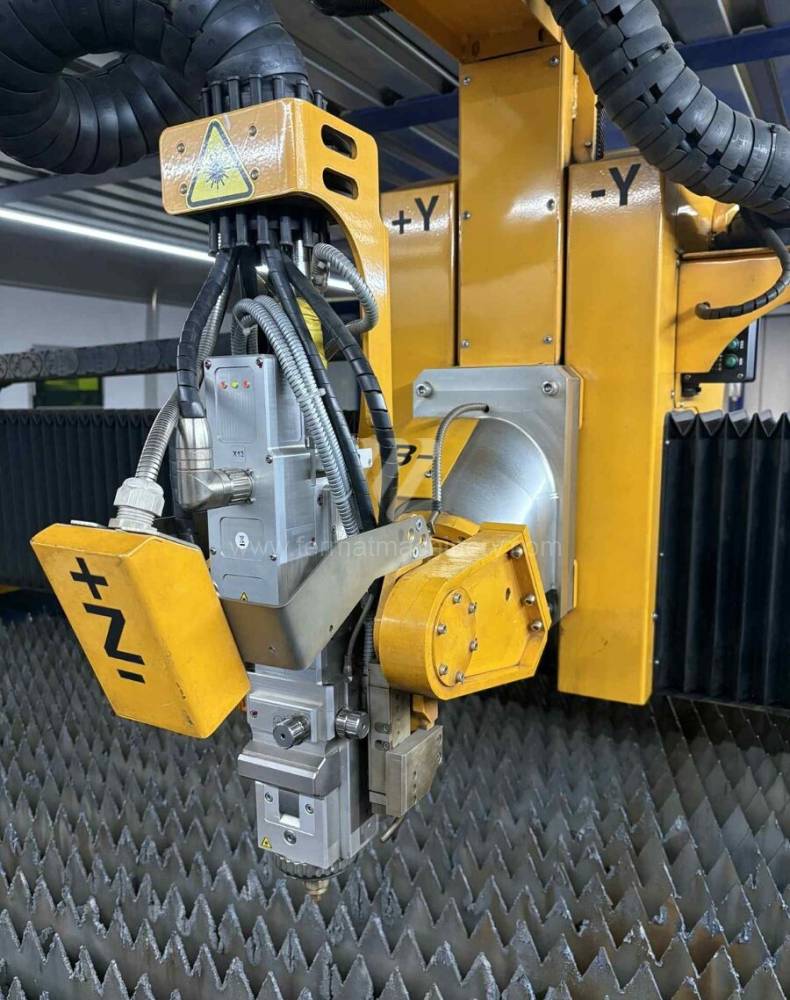

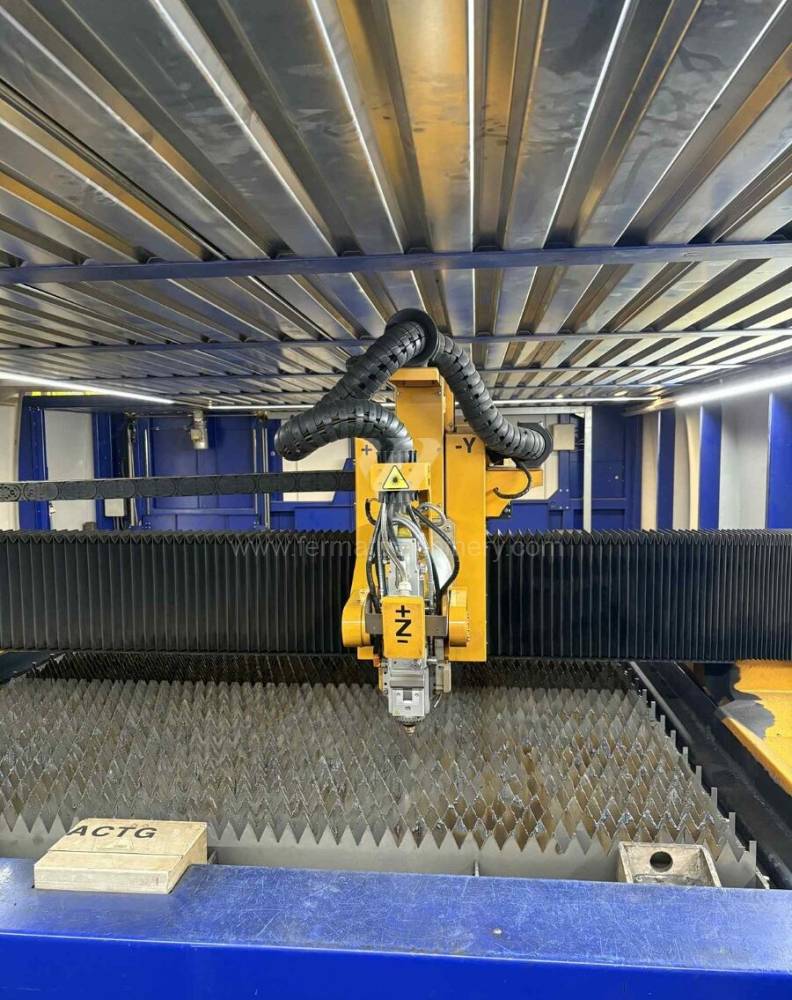

Z-axis positioning speed 50 m/min
Z-axis travel 150 mm
Z-axis acceleration 0.75 G
Position deviation Pa 0.07 mm in accordance with VDI/DGQ 3441
Repeat return accuracy Ps 0.03 mm in accordance with VDI/DGQ 3441
Ambient operating temperature +10 °C to +35 °C
Relative humidity 0 to 90 %
