Frezarka / Inne / PC 6

• Numer inwentarzowy 261198
• Rodzaj maszyny PC 6
• Producent ŠKODA MACHINE TOOL a.s.
• Rok produkcji 1999

Zmiana parametrów technicznych zastrzeżona.

Opis

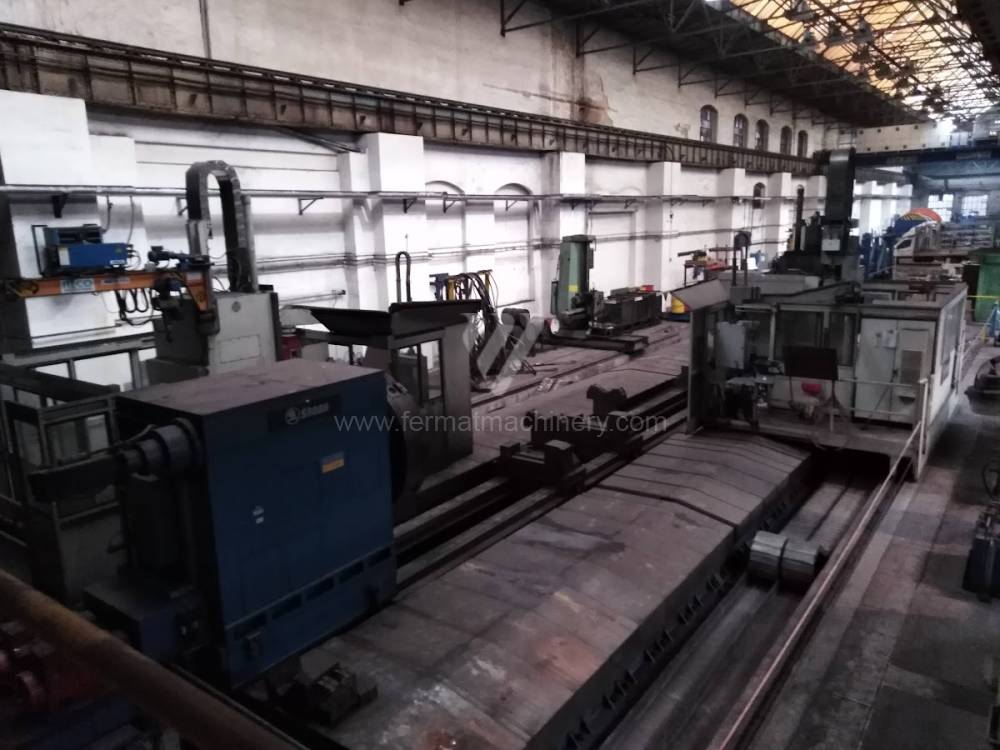

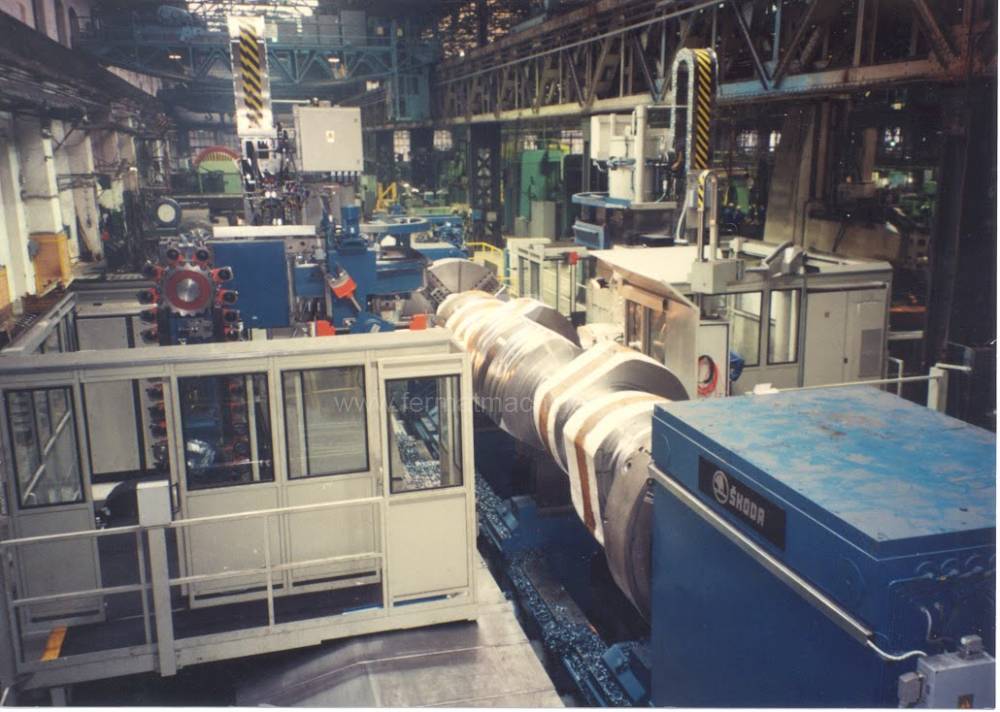

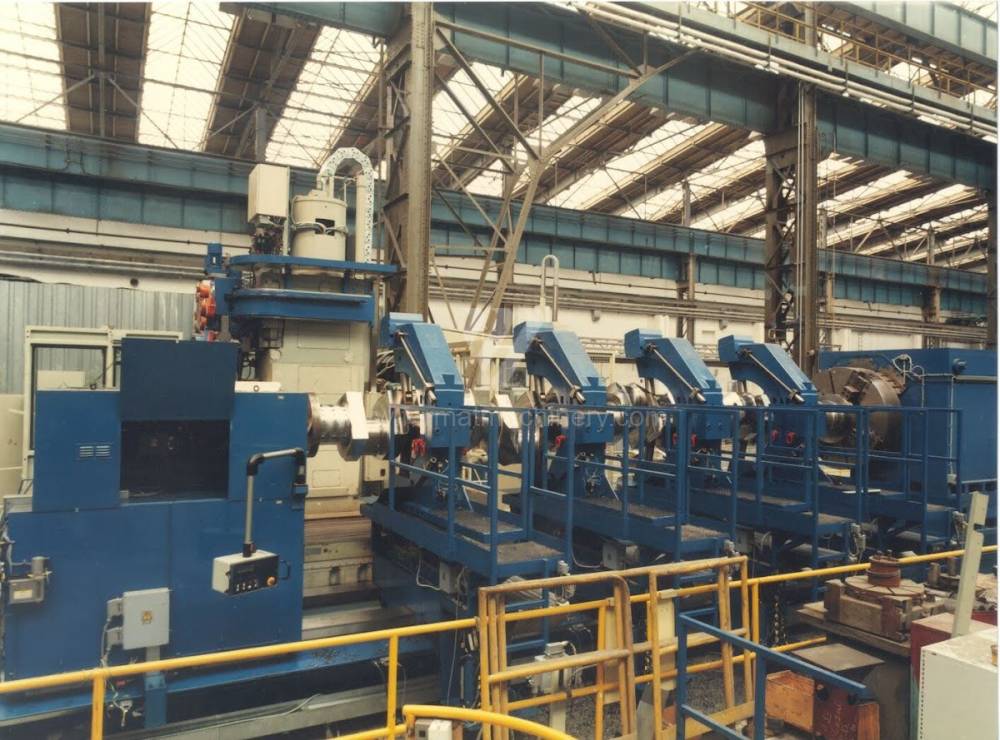

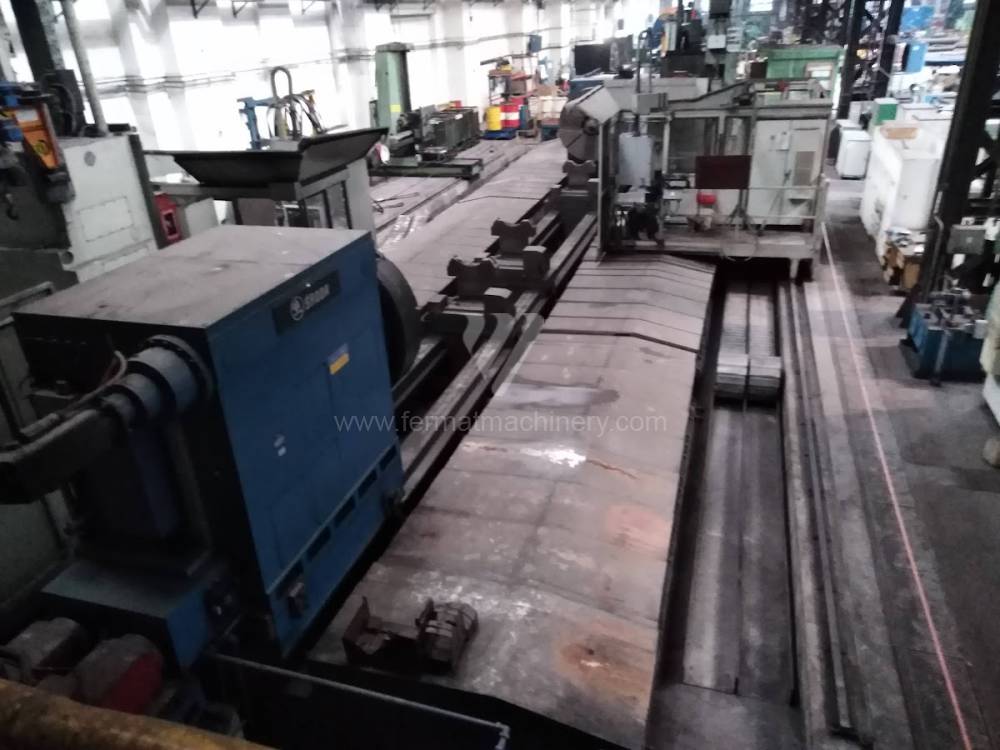

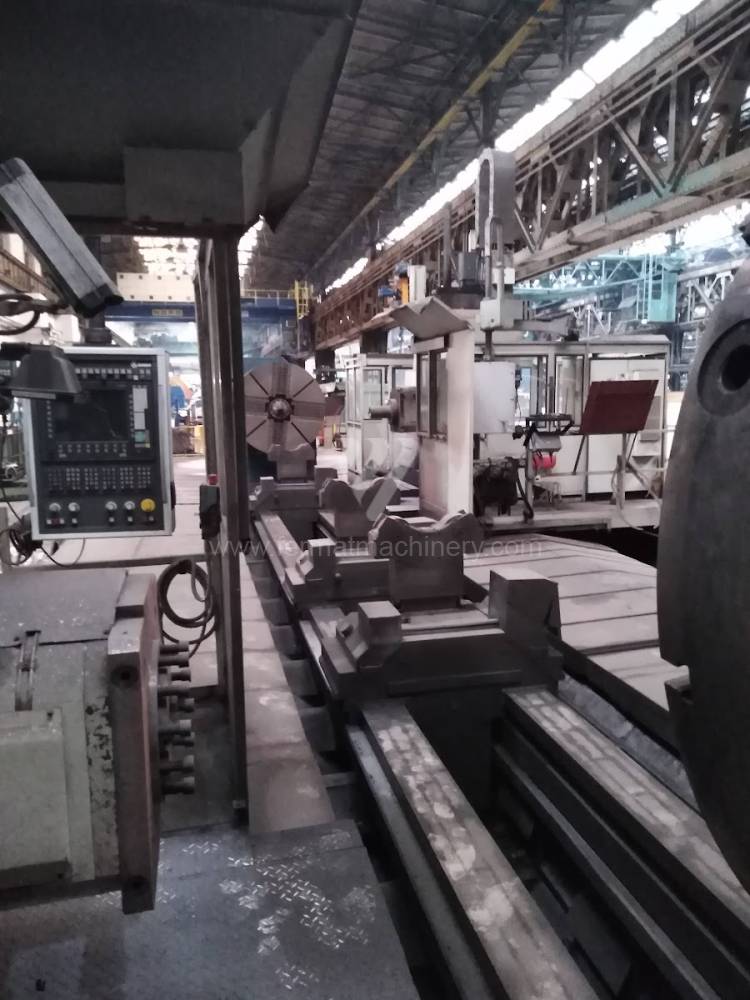

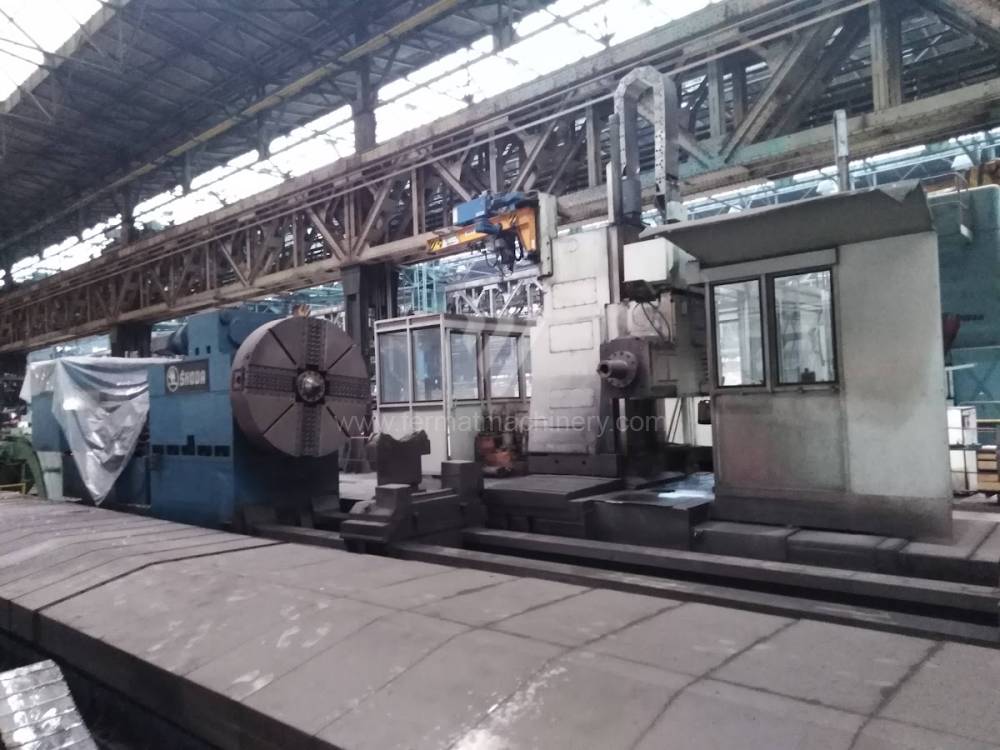

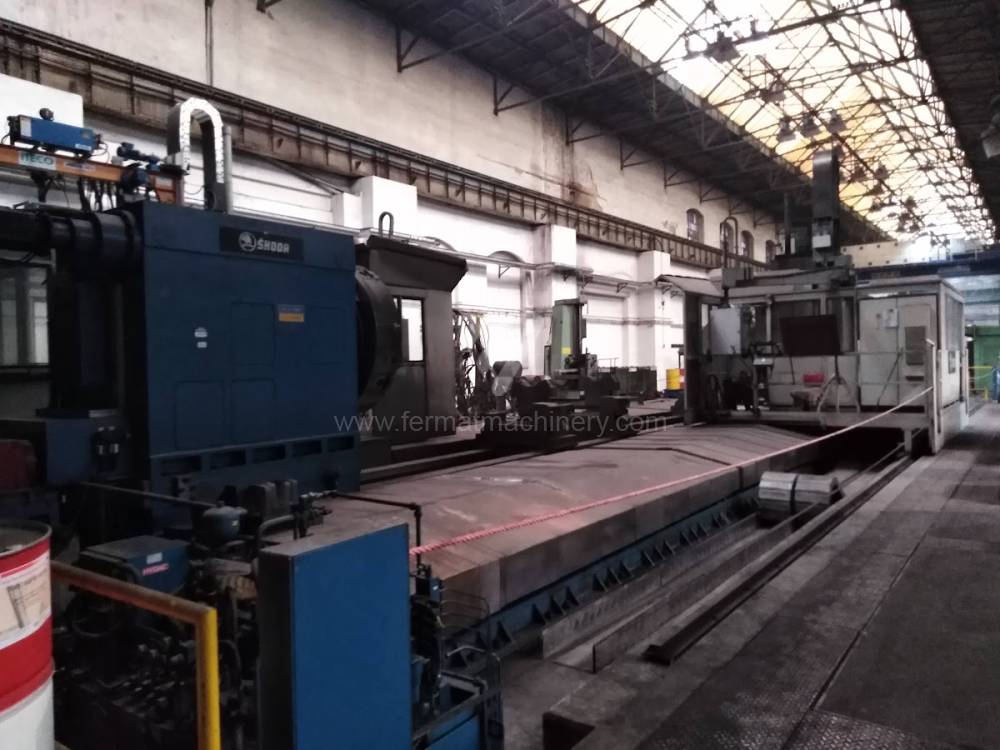

Milling machine PC 6 consists of two beds, two carriages with milling towers facing each other, two headstocks between beds for clamping of round shape of workpiece.

Working range:
- max. swing diameter of workpiece: 1 800 mm
- max. workpiece length: 19 000 mm
- height of tcentres above bed: 1 700 mm

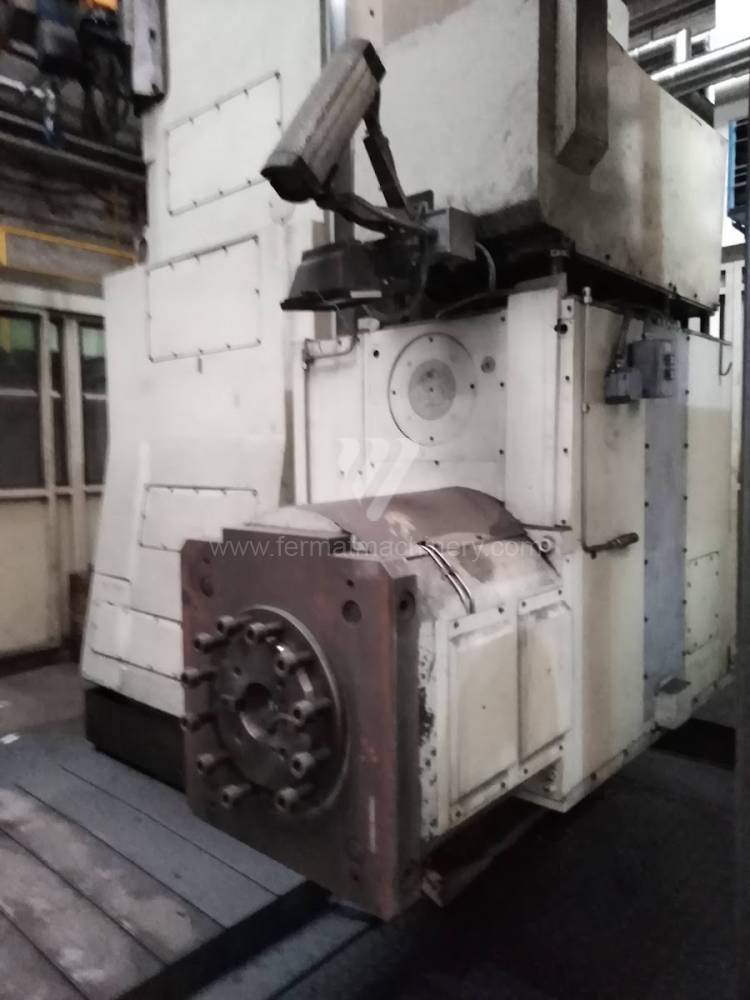

Fixed headstock:
Range of rpm via main drive: 0,4-180 rpm
Output of the main motor: 2x50 kW
Range of rpm via C axis: 0,005-2 rpm
Face plate diameter: 1600 mm
Number of jaws: 4 pcs

Shiftable headstock:
max. rpm when headstock act as tailstock: 180 rpm
range of rpm via C axis 0,005-2 rpm
Face plate diameter: 1600 mm
Range of clamped diameters: 400 - 1250 mm

2x saddle (longitudinal and cross)
Travel of the longitudinal saddle: 19 000 mm
Travel of cross saddle: 1 250 mm
Feed range of saddle: 0,75-6000 mm/min

2x milling tower MTS 1500
vertical travel of milling headstock: +900/-600 mm
clamping taper of milling tools: ISO 60
revolutions of milling spindle: 5-1800 rpm
output of the main Siemens motor: 100 kW
clamping of turnin tools: Capto C10

Total installed capacity approx. 150 kW

Machine in dismantled condition, ready for export.
