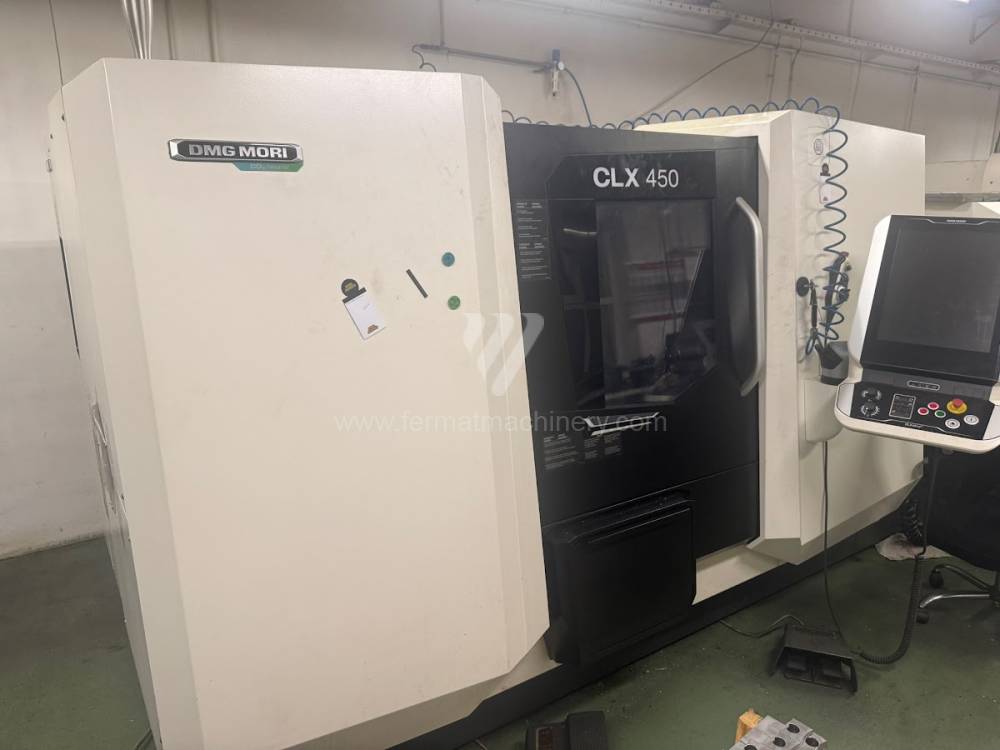

Strunguri / CNC - Diametru pînă la 800 mm / CLX 450v6

• Număr inventar 252030
• Tipul mașinii CLX 450v6
• Producător DMG
• An fabricație 2022

SOLICITARE PRODUS

Descriere

The machine is in very good condition.
Additional advantages of the machine:
- Main spindle options
- C-B0046F Differential clamping pressure for the main spindle
- C-B0050F External clamping chuck for the main spindle
- Filtration class H13. Optional accessories include preparation for connection of an oil mist extractor
- Measurement / Probes. C-C0225F Direct measuring system for the Z axis with air purge

Standard equipment:
- Ergonomic DMG MORI SLIMline® control panel
- Main spindle with A2-8 connection, power 17 / 25.5 kW (100/40% DC), 4000 rpm
- 12-position VDI 40 servo turret with 12 driven sleeves arranged around the circumference of the disc and Trifix® system (coupling according to DIN5480)
- Direct measuring system for X / Y axes
- Clamping mechanism for through-hole, max. bar diameter D80 mm
- Counter spindle with A2-6 connection, built-in ISM 52 electric spindle and blind clamping mechanism, power 13 / 14 kW (100/40% DC), 5000 rpm
- External handwheel
