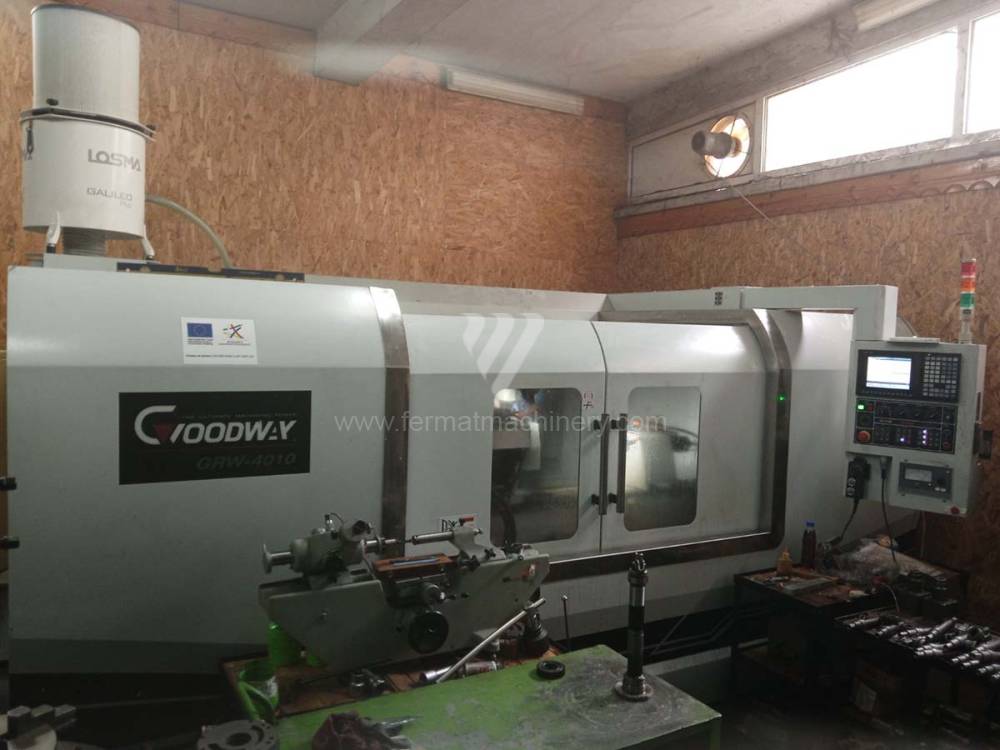

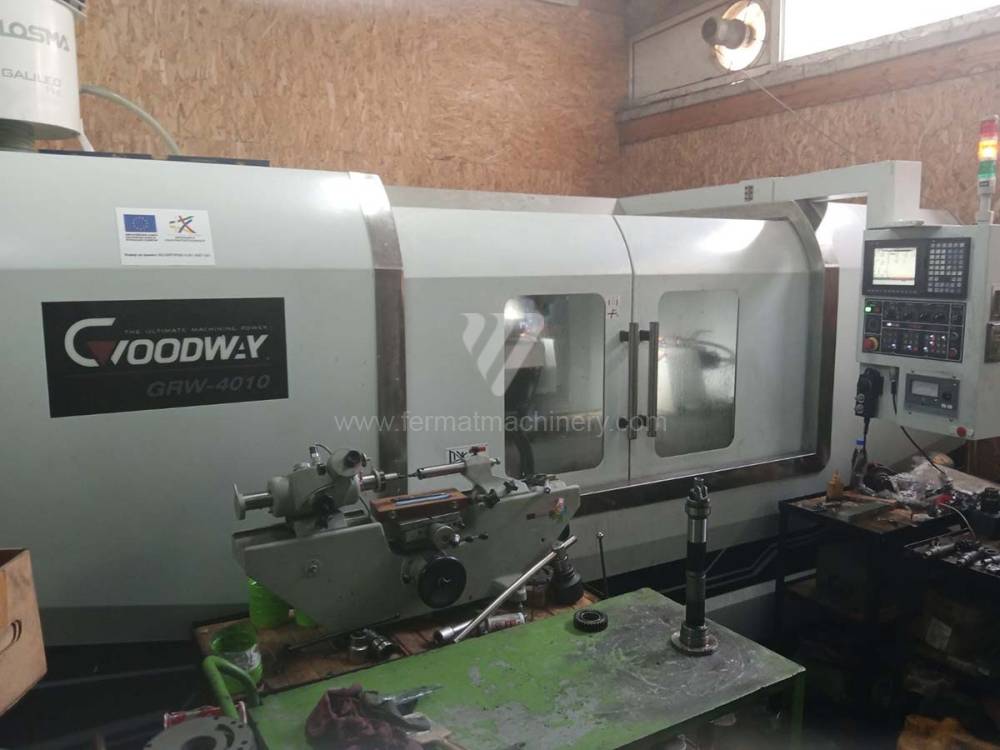

Rectificadora / Entre puntos / GRW-4010

• Núm. de inventario 241085
• Tipo de maquina GRW-4010
• Fabricante Goodway
• Año de fabricación 2018

Sujeto a cambio de parámetros técnicos.

Descripción

Distance between centers 1030 mm
Max. swing over table Ø 420 mm
Max. load between centers 750 kg
Max. external grinding diameter Ø 400 mm
Roundness 1.5 µm
Machine positioning accuracy 2 µm

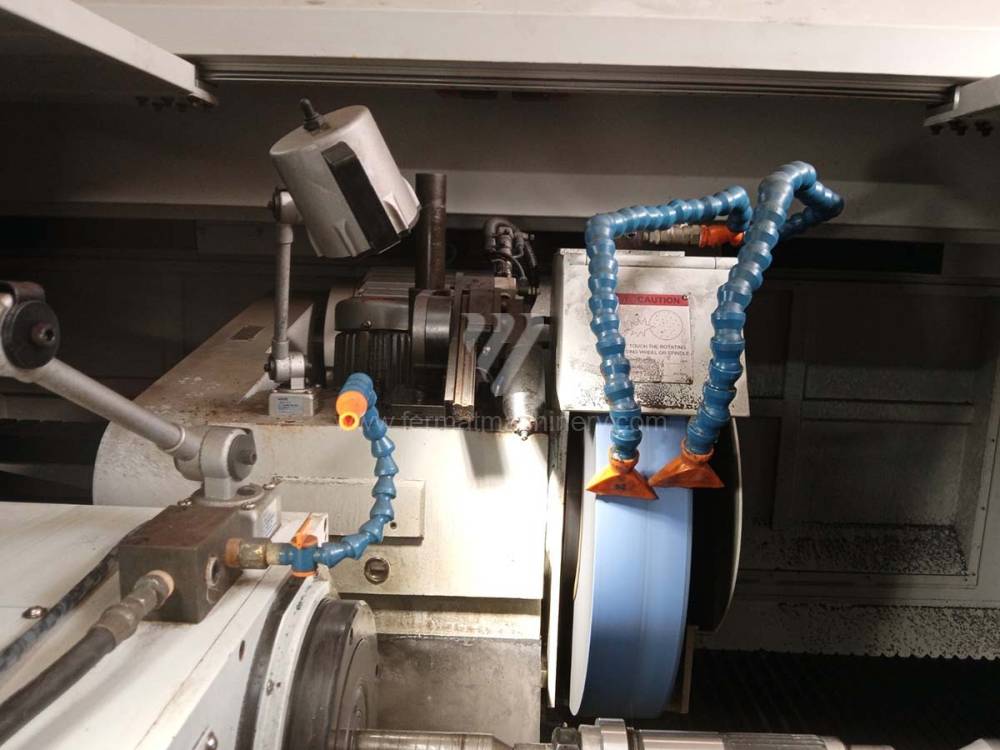

WHEEL SPINDLE

Swivel angle 0°~35°
Wheel O.D. x width x I.D. Ø 610x Max.100x Ø 203 mm
Wheel spindle travel 320 mm
Min. setting unit 0.001 mm
Max. rapid traverse speed 6 m/min.
Grinding feed rate 0.001 - 6,000 mm/min.

WORK TABLE

Swivel angle -3° ~ +8°
Max. rapid traverse speed 10 m/min.
Min. setting unit 0.001 mm
Grinding feed rate 0.001 - 8000 mm/min.

WORK-PIECE SPINDLE

Servo Spindle motor -Swivel angle
Swivel angle +90° ~ -30°
Center taper MT#5

TAILSTOCK

Travel 35 mm
Center taper MT#5

MOTOR

Axes drive motor X-axis 3.5 kW
Z-axis 4.5 kW
Wheel spindle motor 15 HP 6P
Work-piece spindle servo motor 3.0 kW
Hydraulic pump 2 HP
Coolant pump 1/2 HP

GENERAL

Dimensions 4150x2530x2,015
Net weight 9500 kg
