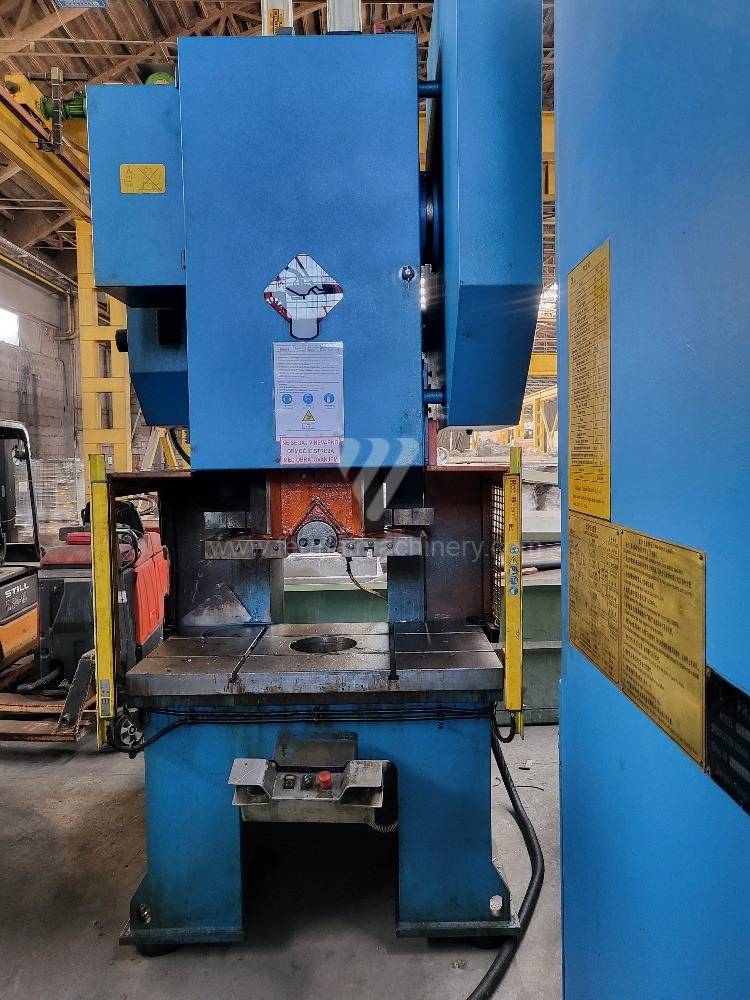

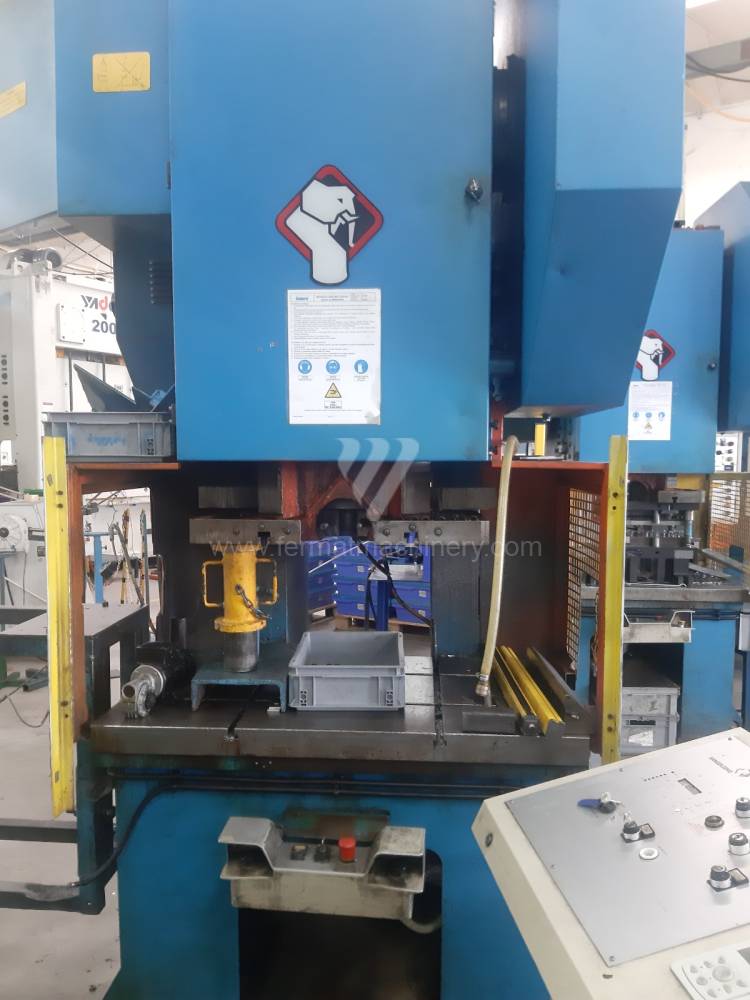

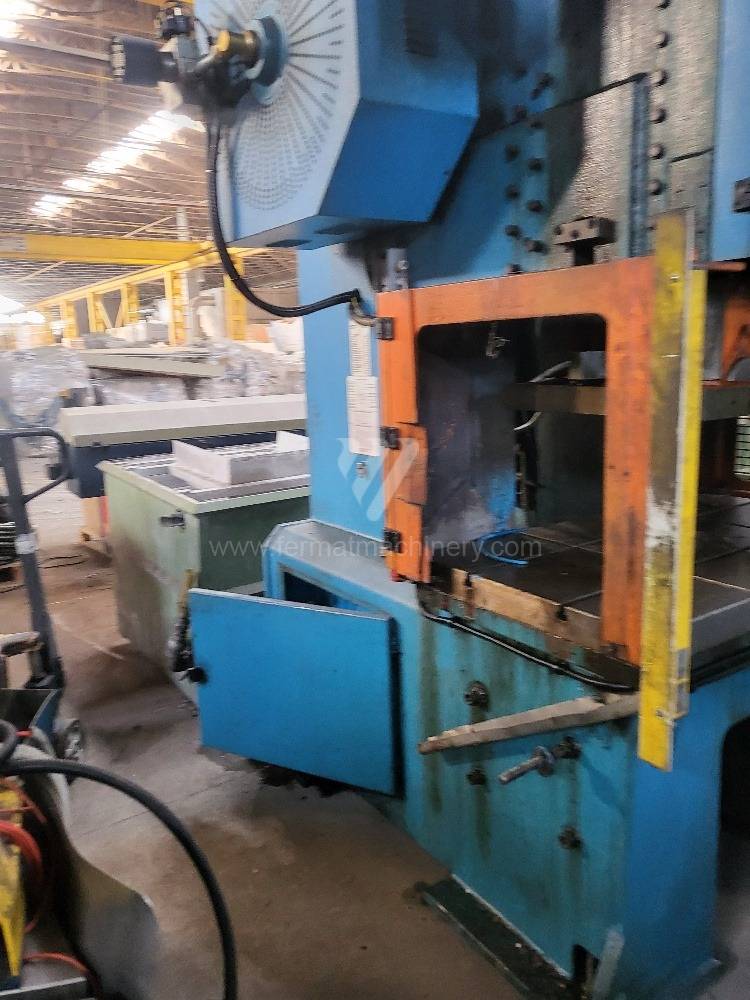

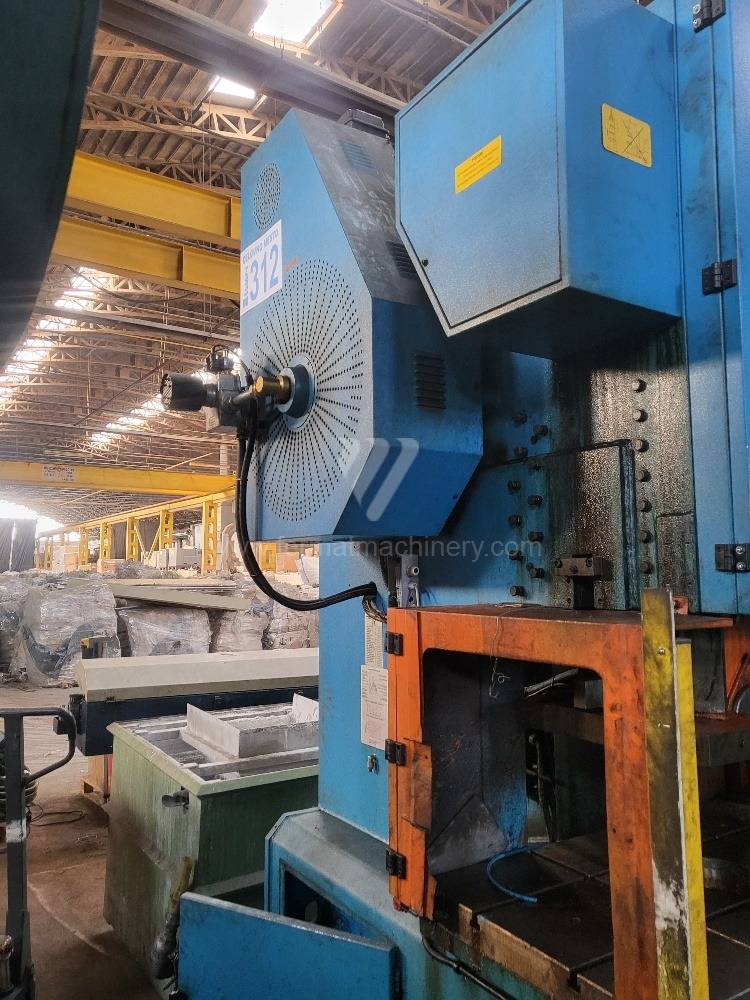

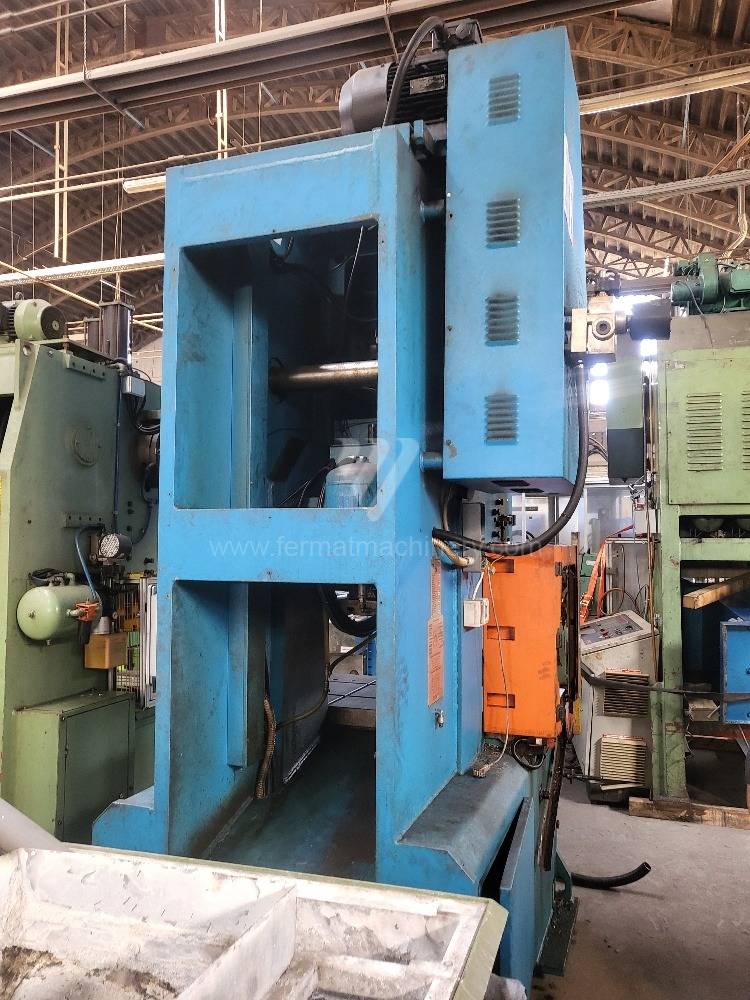

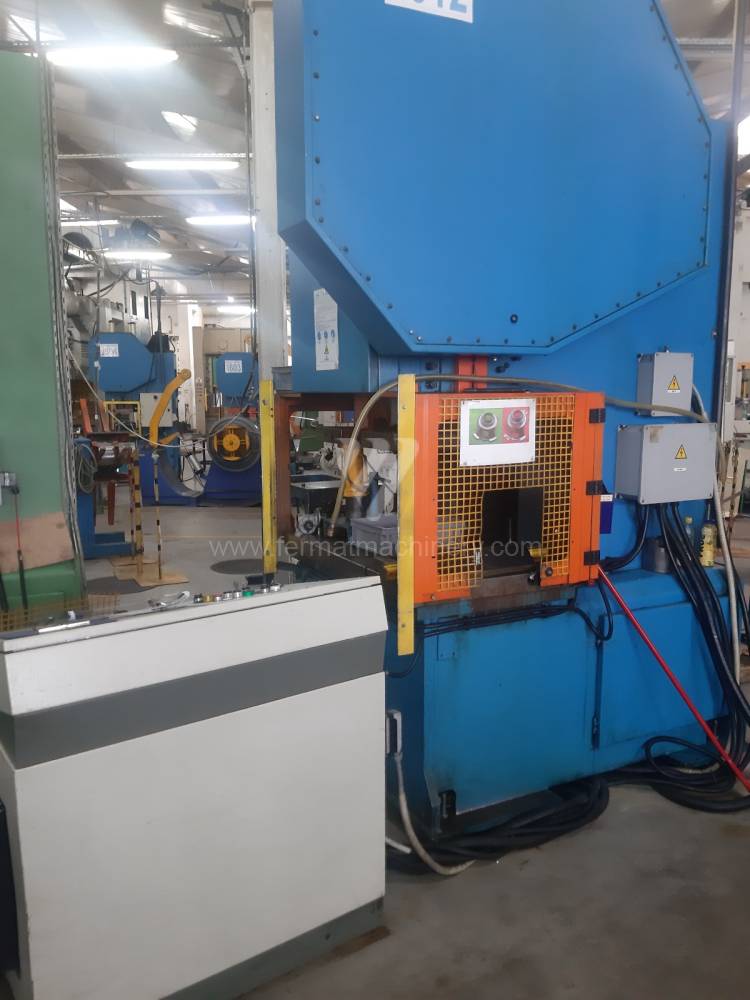

Prensa / Excéntrica sobre el 100 T / T130R

• Núm. de inventario 261374
• Tipo de maquina T130R
• Fabricante SanGiacomo Presse
• Año de fabricación 2004

Sujeto a cambio de parámetros técnicos.

Descripción

Nominal force: 1300 kN
Nominal stroke: 7.5 mm
Adjustable stroke: 16÷200 mm
Stop position: TDC
Ram adjustment: 100 mm
Stop time: 190 ms
Strokes per minute min./max.: 10/55
Maximum mould surface: 600 x 1100 mm
Maximum closed mould height: 452 mm
Min. closed mould height: 260 mm
Upper mould mass: 140 kg
Flywheel revolutions per 1°: 411
Max. insertions at 1°: 28
Installed power: KW 11
Voltage: V400
Auxiliary voltage: V24
Operating air pressure: BAR 5.5÷6
Mass: Kg. 10,000
Motorized hammer adjustment
Hydraulic overload safety
Speed regulation
Complete with user manual and CE conformity.
• Work surface revived on CNC machine;
