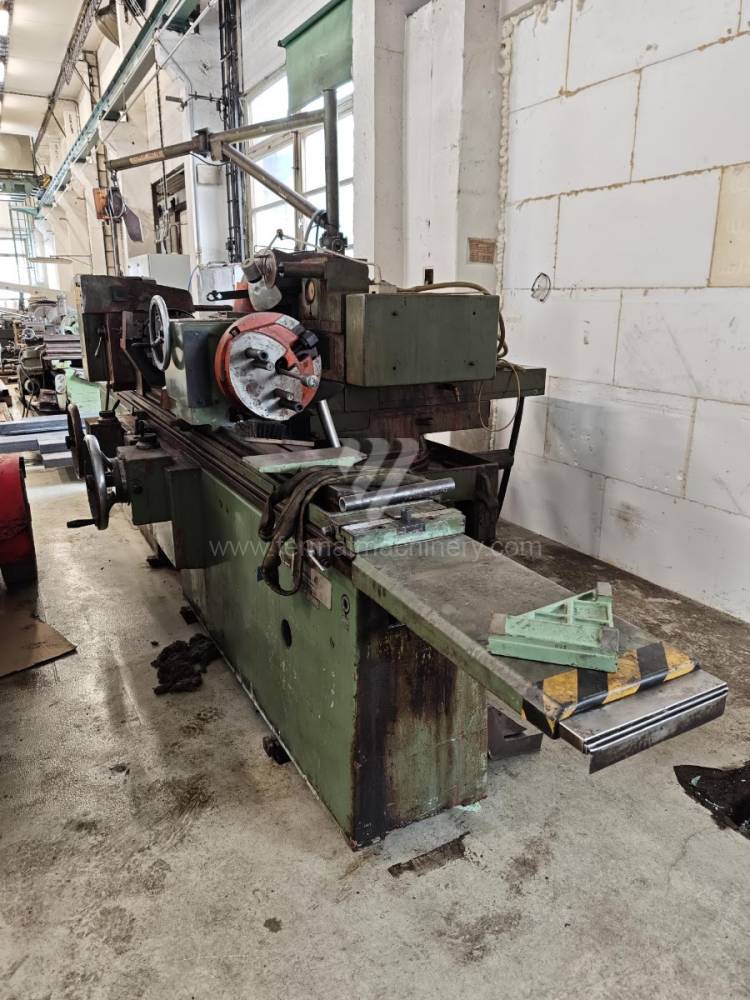

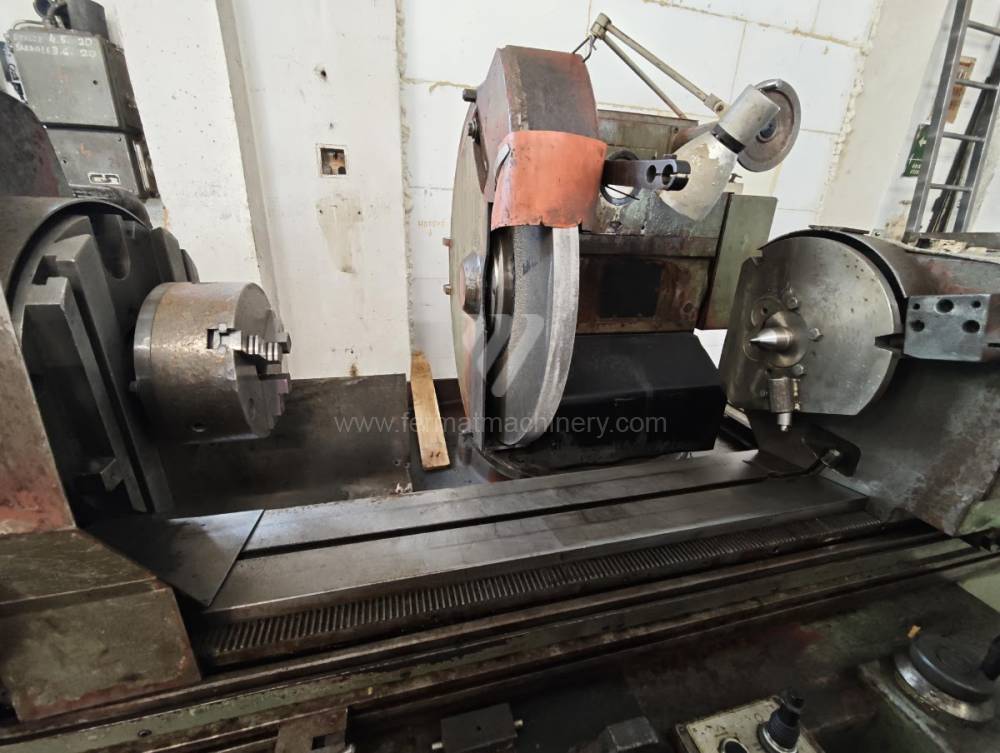

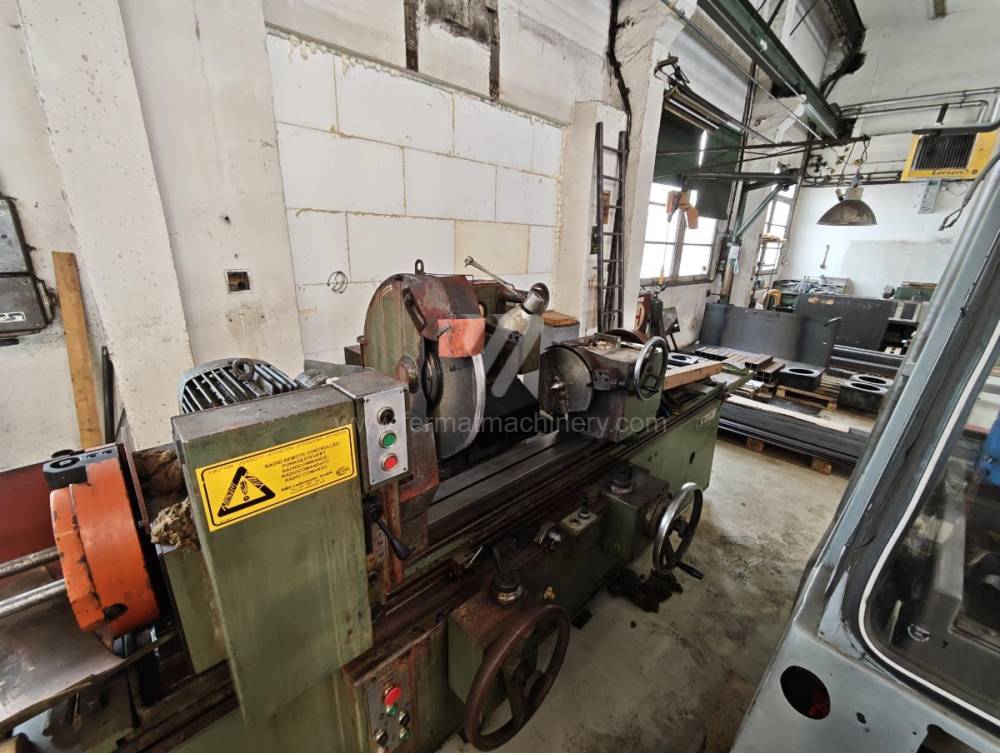

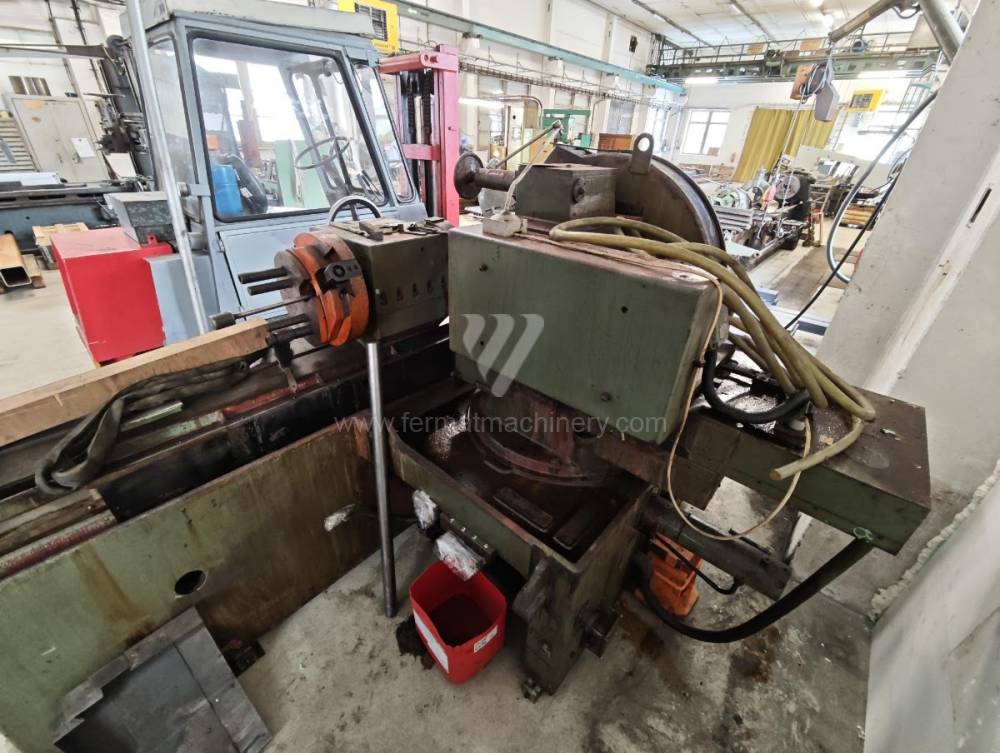

Rectifieuse / Vilebrequins / BKO 50/1700

• NUMERO D'INVENTAIRE 261472
• Type de machine BKO 50/1700
• Fabricant TOS Hostivař

Demander un produit

Sujet au changement de paramètres techniques.

Descripcion

Machine model: BKO 50TH 34
Distance between chucks: 1200 (1700) mm
Max. eccentricity of crankshaft journals: 130 mm
Grinding wheel: 900 x 32 x 305
Max. wheel width: 50 mm
Max. workpiece weight (crankshaft): 120 kg
Max. workpiece weight (center-clamped): 250 kg
Grinding spindle speed: 700; 804 rpm
Rapid traverse of grinding head: 110 mm
Transverse travel of grinding spindle: 420 mm
Feed of grinding spindle per 1 revolution of handwheel
Coarse: 4 mm
Fine: 0.08 mm
Swing diameter in open rest: 25–100 mm

The machine is in good condition, not under power.
