Attrezzature di taglio / Altro / Q35Y-20

• Nr. di inventario 251486

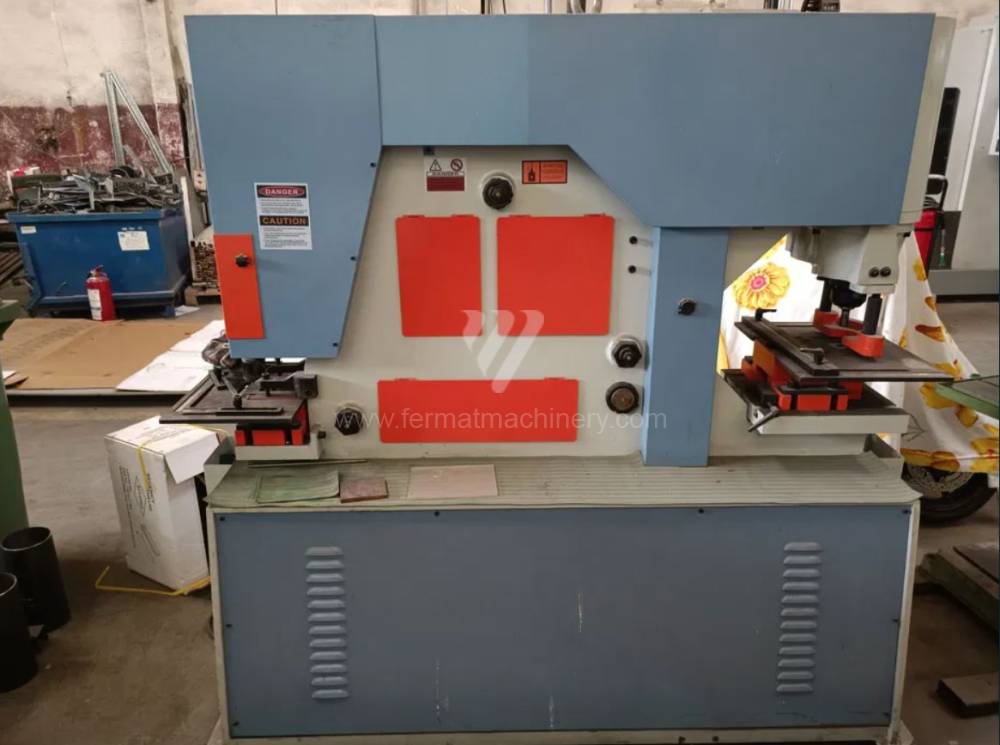

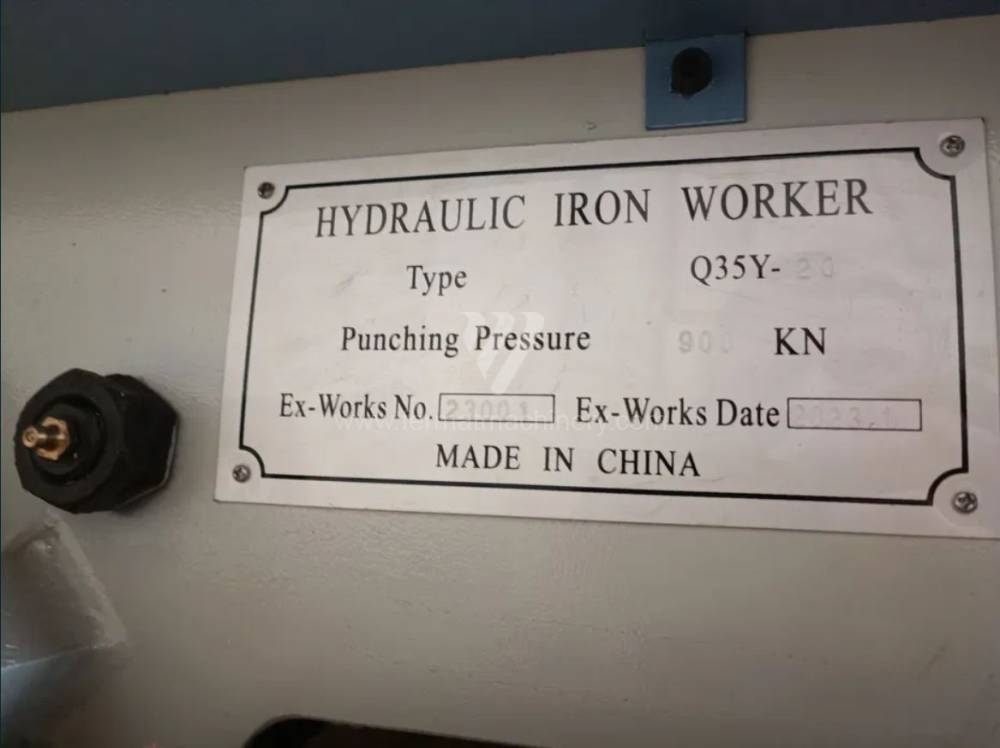

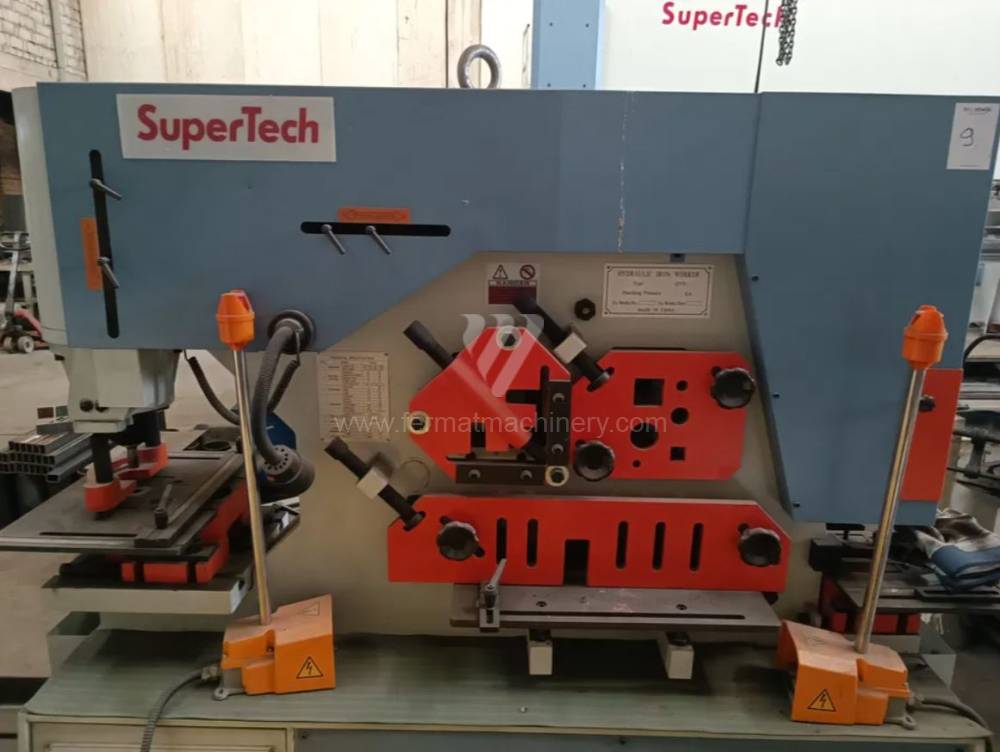

• Tipo di macchina Q35Y-20
• Produttore Supertec
• Anno di fabbricazione 2023

RICHIEDI PRODOTTO

Soggetto a modifica dei parametri tecnici.

Descrizione

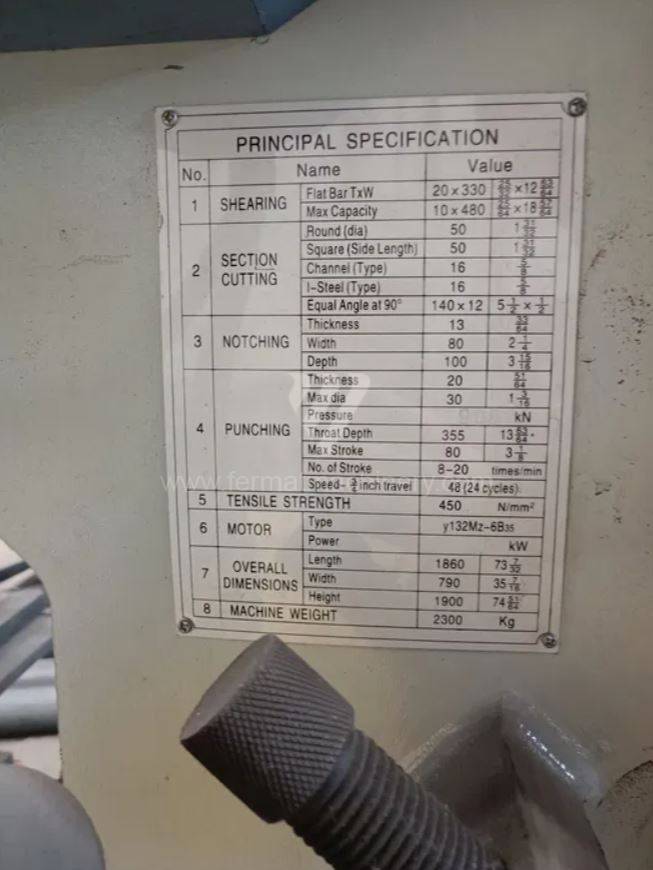

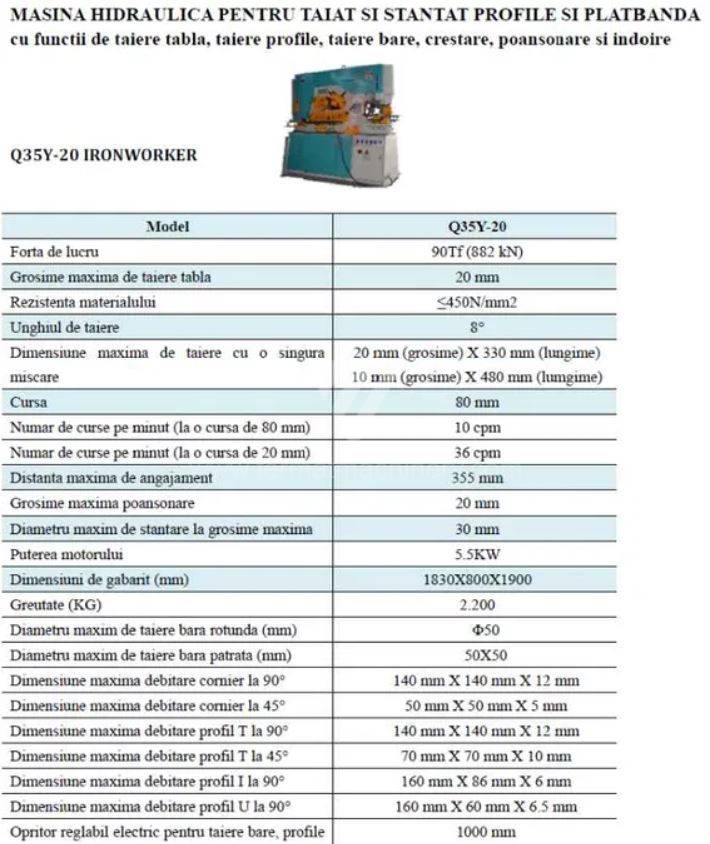

Force: 90 ton
Max shearing thickness: 20 mm
Material strength to be worked 450 N/mm2
Cutting angle: 8 degree
Shearing size of one stroke: 20 mm (thickness) x 330 mm (length) / 10 mm (thickness) x 480 mm (length)
Ram stroke: 80 mm
Frequency of strokes: 10 / minute
Throat depth: 355 mm
Max thickness of material for punching operations: 20 mm
Max diameter for punching: 30 mm
Power of main motor: 5,5 kW
Overall dimension: 1830 mm x 800 mm x 1920 mm
Weight: 2200 kg

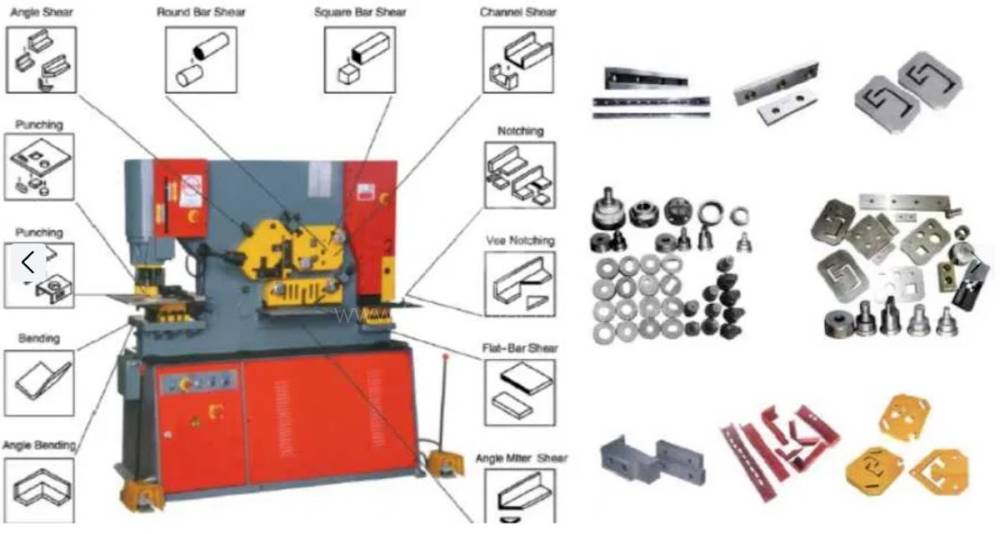

Accesories included:
Punching die (round type): 12 mm, 16 mm, 18 mm, 20 mm, 25 mm, 30 mm
Punching die (waist type): 12x25 mm, 14 x 30 mm
Lock-nut group
Shutter mould: 100x20x1,5 mm
Notching: 90 degree mould

Standard mould for shearing profiles
- round bar 50 mm diameter
- square bar 50 mm x 50 mm
- Angle profile up to 140x140x12 mm
- T-bar profile up to 140x140x12 mm
- I-bar profile up to 160x86x6 mm
- U-bar profile up to 160x60x6,5 mm

Machine is new, never used, can be tested anytime.
