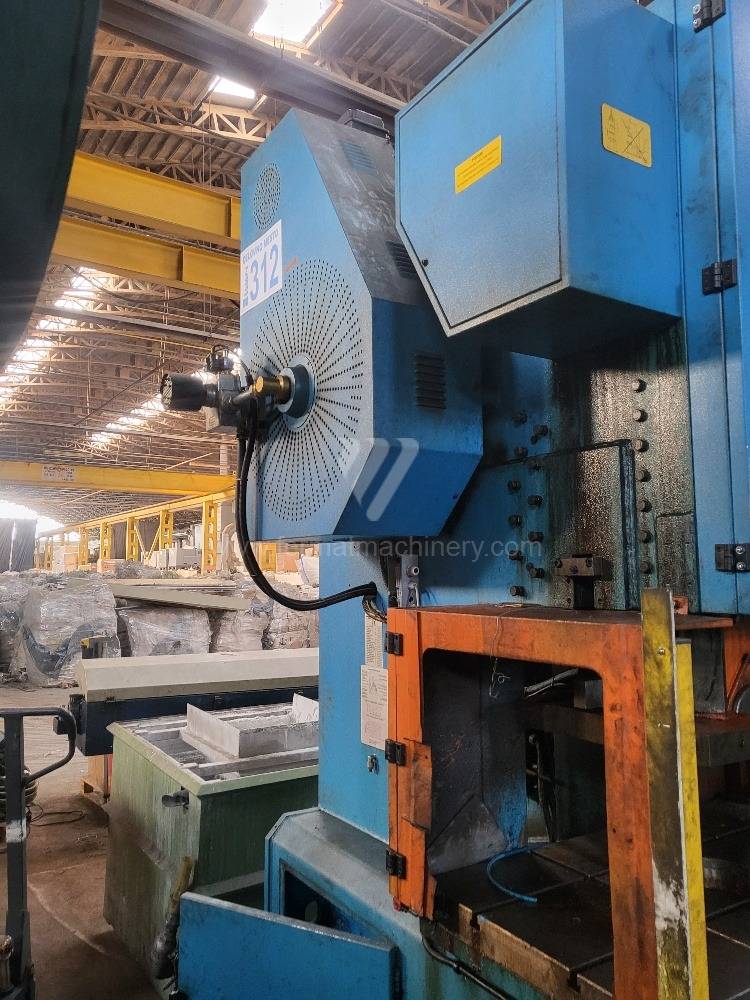

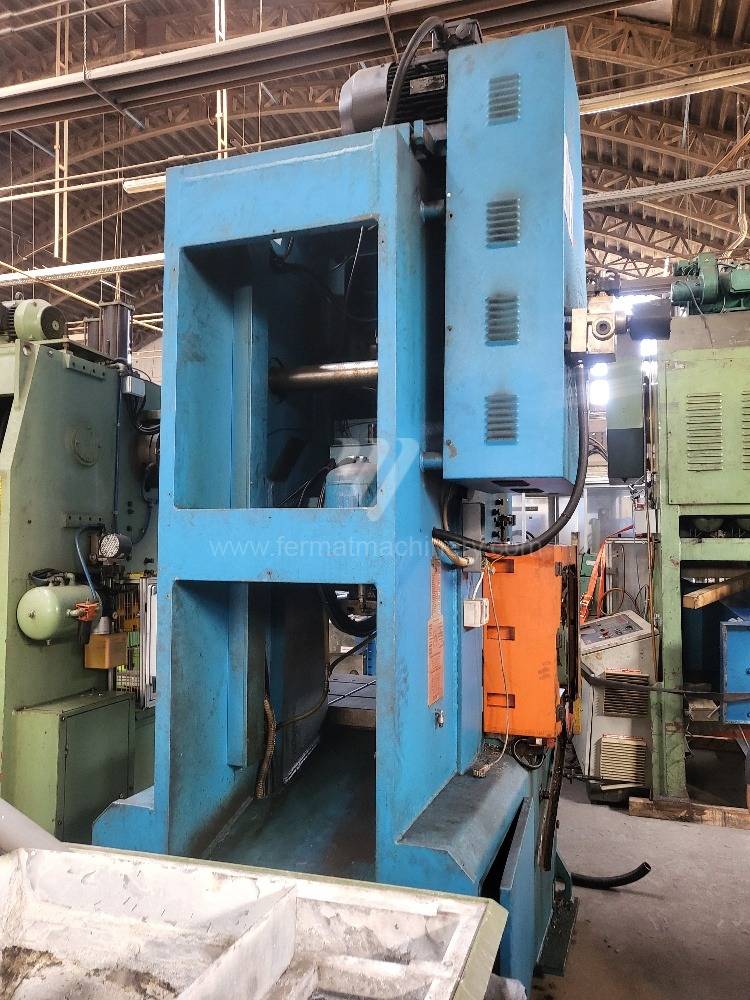

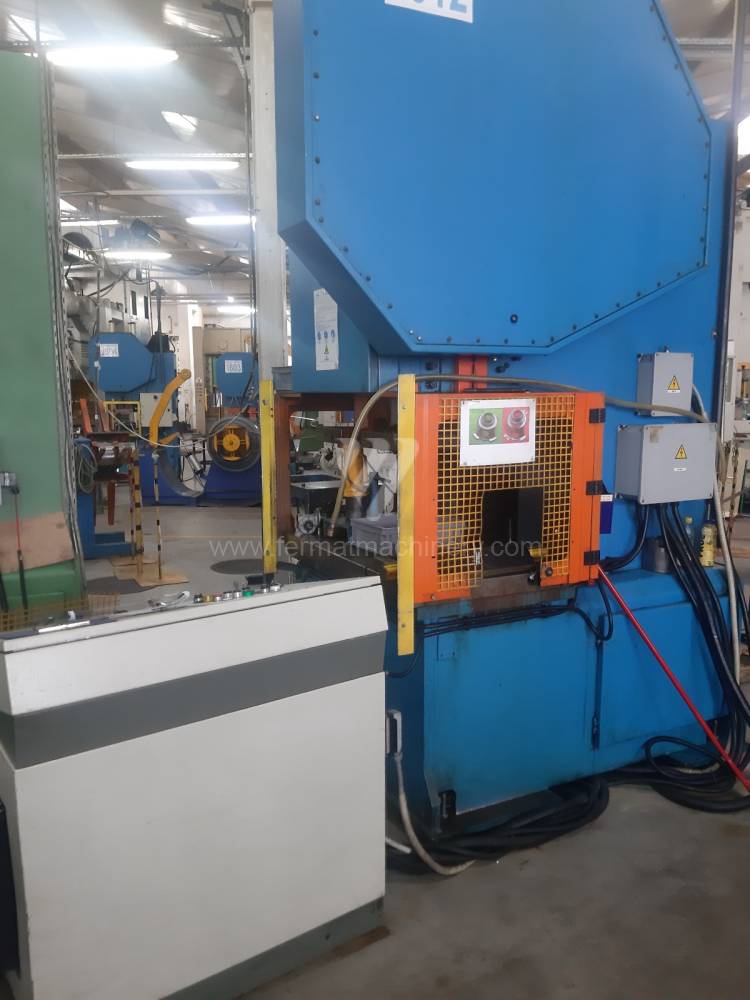

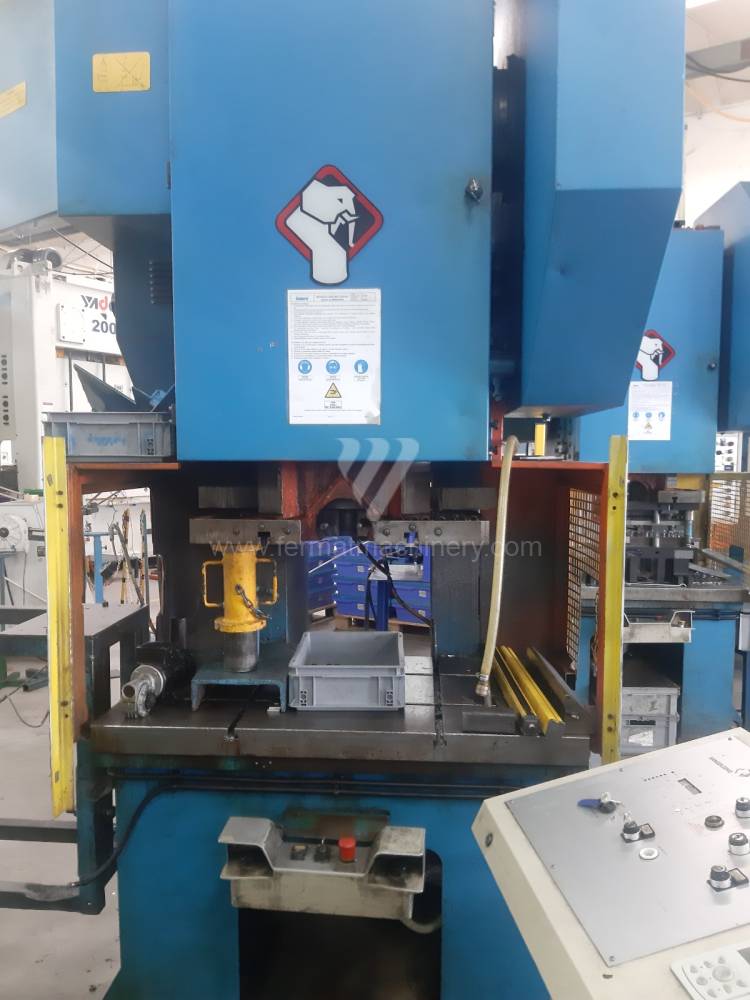

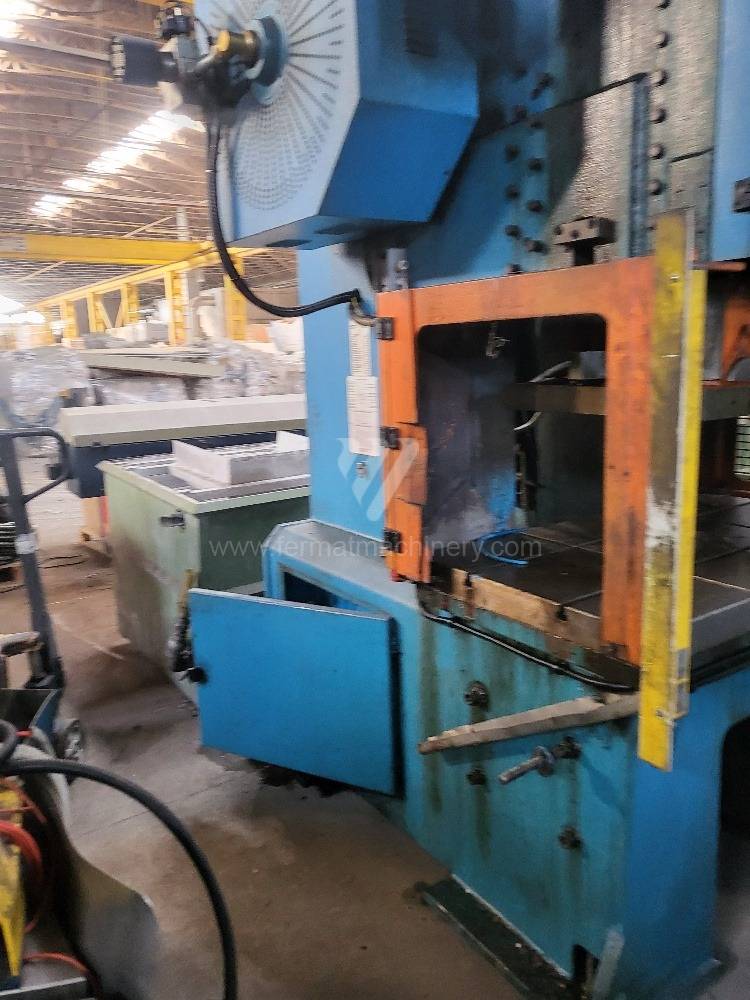

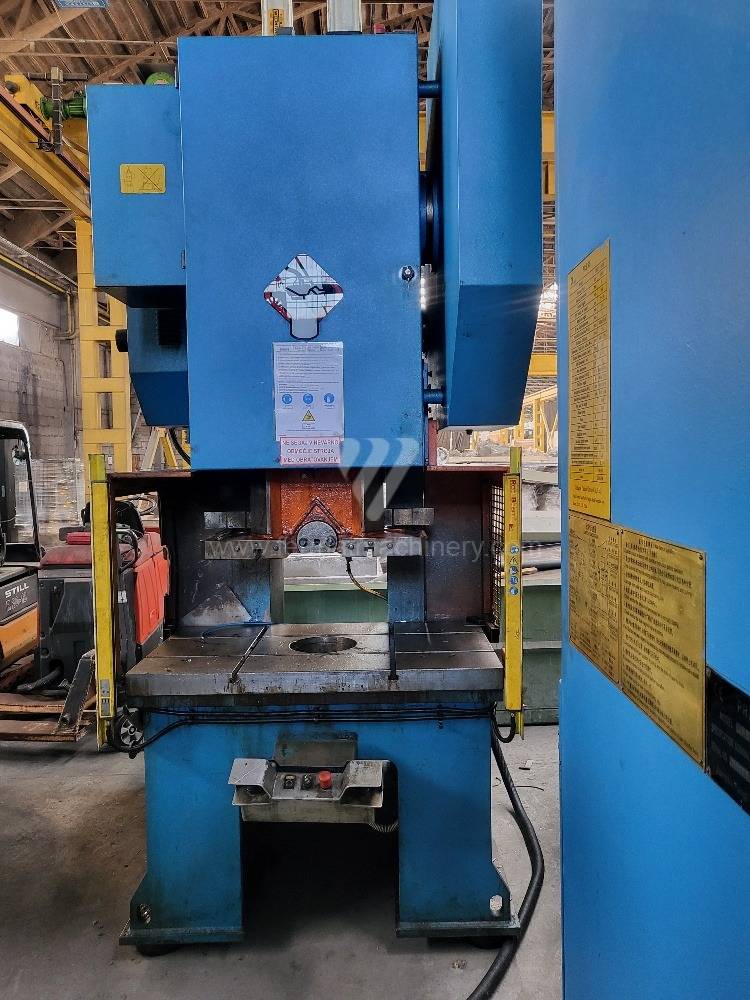

Prés / Excenter 100 t - tól / T130R

• Katalógusszám 261374
• Gép típusa T130R
• Gyártó SanGiacomo Presse
• Gyártás éve 2004

Műszaki paraméterek változásának a joga fenntartva.

Leírás

Nominal force: 1300 kN
Nominal stroke: 7.5 mm
Adjustable stroke: 16÷200 mm
Stop position: TDC
Ram adjustment: 100 mm
Stop time: 190 ms
Strokes per minute min./max.: 10/55
Maximum mould surface: 600 x 1100 mm
Maximum closed mould height: 452 mm
Min. closed mould height: 260 mm
Upper mould mass: 140 kg
Flywheel revolutions per 1°: 411
Max. insertions at 1°: 28
Installed power: KW 11
Voltage: V400
Auxiliary voltage: V24
Operating air pressure: BAR 5.5÷6
Mass: Kg. 10,000
Motorized hammer adjustment
Hydraulic overload safety
Speed regulation
Complete with user manual and CE conformity.
• Work surface revived on CNC machine;
